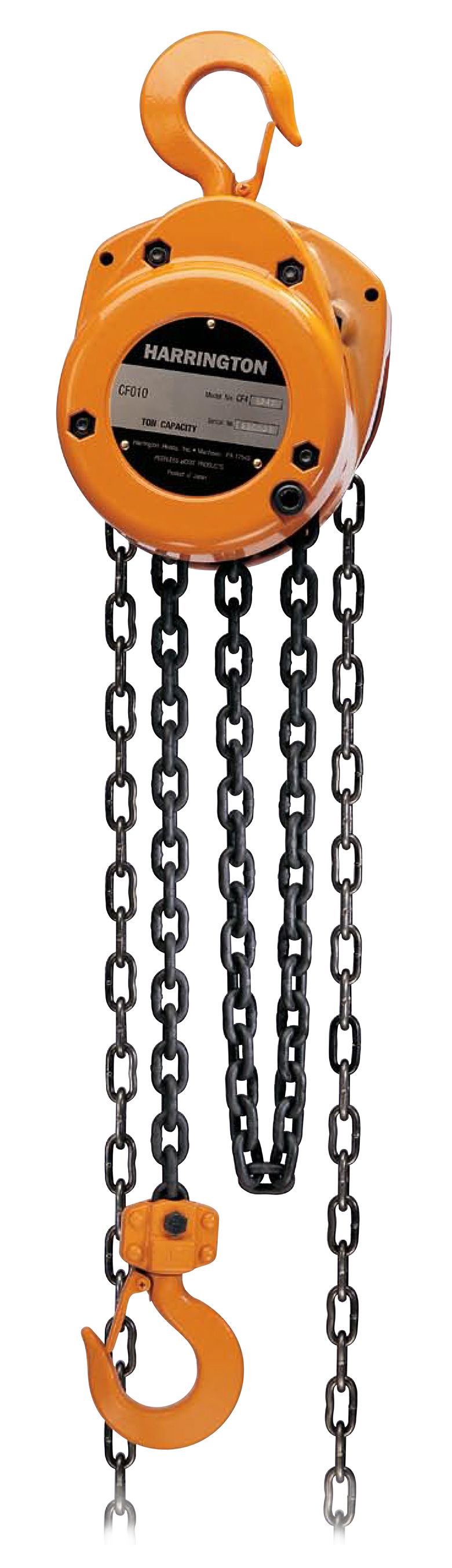

1/2 Ton Harrington CF Series, Hand Chain Hoist, 20 ft. Lift, Part No CF005-20

Availability: In stock

SKU: CF005-20

Manufacturer part number: CF005-20

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Lift

Hoist Accessories

$457.00

Qty:

Documents, Drawings, and Manuals

Spec Sheet

Harrington CF Hand Chain Hoist Specs

Manual

Harrington CF Hand Chain Hoist Manual

Product Specifications

Attribute name	Attribute value
Features	Capacity: 1/2 Ton Headroom: 12.8 in. Pull Force: 60 lbs. Reeving: 1 Approx. Weight: 34 lbs. Low headroom and compact design results in lightweight and easy portability. Limited number of parts simplifies and reduces maintenance. Grade 100 heat-treated manganese alloy load chain resists abrasion and wear while minimizing chain weight. Forged and heat-treated alloy steel hooks are designed to open slowly, without fracturing under excessive loads. Test certificate verifies that every hoist has been factory load tested to 125% of rated capacity, in accordance with ASME B30.16 requirements. All-steel construction featuring rugged gear case enclosure and handwheel cover. Standard slip clutch device prevents the hoist from being used to lift damaging loads beyond rated capacity. Double pawl springs provide redundancy for reliable operation of brake mechanism. Get reliable braking with double enclosed brake cover that keeps out dust, rain, and dirt.
Warranty	2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSRE's repair facility.)
Country of Origin	Japan
