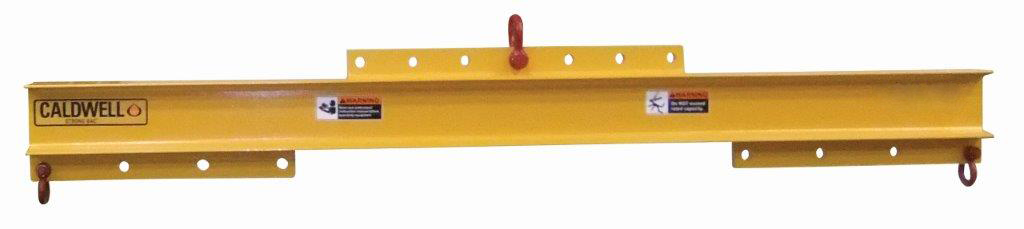

1/2 Ton Adjustable Lifting & Spreader Beam, Spread 1 ft - 4 ft

High quality adjustable beam designed by the Caldwell Group for lifting beam and spreader beam applications. All lifting and spreader beams are engineered and manufactured to ASME B30.20, ASTM & OSHA standards.
Manufacturer: Caldwell
SKU: 16-1/2-4
Manufacturer part number: 16-1/2-4
Lead Time (subject to change, call to verify): typically ships in 5-7 business days
*
Call for Price - (314) 869-7200
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Manufacturer's Part Number: 16-1/2-4
  • Manufacturer's Model: Model 16
  • Capacity: 1/2 Ton / 453.59 kg
  • Spread Min-Max: 1 ft.- 4 ft. (non-standard spreads available upon request)
  • Standards:  All Caldwell below the hook lifters meet or exceed all ASME, OSHA, & ASTM standards
  • Standard Product Features: Model 16 adjustable lifting & spreader beams are equipped with standard top and bottom shackles. Model 16 lifting & spreader beams feature adjustable top and bottom lifting points, allowing model 16 beams to be used as both a lifting beam and a spreader beam. These adjustable points also allow model 16 beams to handle wide and unbalanced loads with ease.
  • Optional Product Features Available upon request:
    • Pair of Swivel Hooks
    • Chain Top Rigging
    • Extra hooks
    • Cross Beams - Allowing model 16 beams to be used for 3-point & 4-point lifts
Country of OriginMade in the USA
