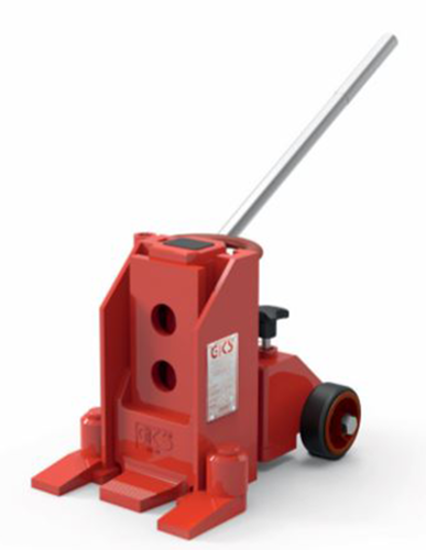

GKS V5 Hydraulic Toe Jack, Capacity 11,000 lbs, Part No. 1-10181

Manufacturer: GKS-Perfekt

Availability: In stock

SKU: 1-10181

Manufacturer part number: 1-10181

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

$2,871.32

Qty:

Documents, Drawings, and Manuals

Specs

GKS Hydraulic Toe Jack Specs

Manual

GKS Hydraulic Toe Jack Manual

Product Specifications

Attribute name	Attribute value
Features	Part Number: 1-10181 Load Capacity: 11,000 lbs. / 50kN (5 t) Loading Height: Toe Min: 0.6 in. / 15 mm Toe Max: 5.7 in. / 145 mm Top Plate: 10 in. / 252 mm Lifting Height: 5.5 in. / 140 mm Lifting Toe Positions: 3 Working Pressure: 7,542 psi / 520 bar Top Plate (L x W): 2.7 x 2.4 in. / 68 x 60 mm Dimensions (L x W x H): 11.2 x 9.3 x 10 in. / 285 x 235 x 252 mm Weight: 46 lbs. / 21 kg Easy-to-use, sturdy, and self-contained hydraulic jack is the ideal solution for lifting equipment in a range of environments. Adjustable die-forged toe and extended feet offer more stability and flexibility than a standard jack. Full load capacity on top plate and toe. Peg on the back of the toe secures correct insertion. Includes a safety valve for overload protection and a release valve to lower loads precisely and carefully. Ability to operate with a manual lift or a hydraulic pump. Built with high-grade materials and precision guide-ways. Extremely low loading height. Nonslip friction pad on the head of the jack. Wheels for easy transport. Simplified Design — less parts, less problems.
