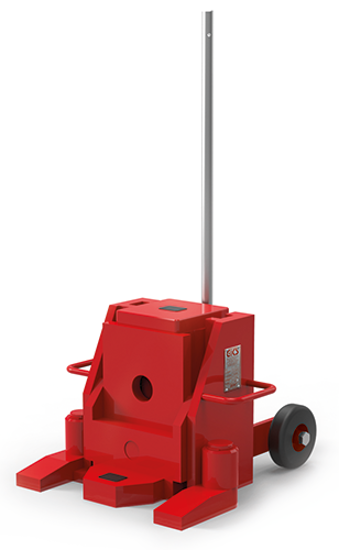

GKS V30-EX Toe Jack with External Hydraulics, Capacity 66,000 lbs, Part No. 1-11140

Manufacturer: GKS-Perfekt

Availability: In stock

SKU: 1-11140

Manufacturer part number: 1-11140

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

$13,346.82

Qty:

Documents, Drawings, and Manuals

Specs

GKS Hydraulic Toe Jack Specs

Product Specifications

Attribute name	Attribute value
Features	Part Number: 1-11140 Load Capacity: 66,000 lbs. / 300kN (30 t) Loading Height: Toe Min: 1.6 in. / 40 mm Top Plate: 13 in. / 330 mm Lifting Height: 6.1 in. / 156 mm Lifting Toe Positions: 2 Working Pressure: 6,237 psi / 430 bar Top Plate (L x W): 6.1 x 5.9 in. / 156 x 150 mm Dimensions (L x W x H): 17.9 x 15.7 x 13 in. / 454 x 400 x 330 mm Weight: 232 lbs. / 105 kg Easy-to-use, sturdy, and self-contained hydraulic jack is the ideal solution for lifting equipment in a range of environments. Built without internal hydraulics to minimize weight and size — MUST USE WITH A HYDRAULIC PUMP. Adjustable, die-forged toe and extended feet offer more stability and flexibility than a standard jack. Full load capacity on top plate and toe. Peg on the back of the toe secures correct insertion. Includes a safety valve for overload protection and a release valve to lower loads precisely and carefully. Built with high-grade materials and precision guide-ways. Extremely low loading height. Nonslip friction pad on the head of the jack. Wheels for easy transport. Simplified Design — less parts, less problems.
