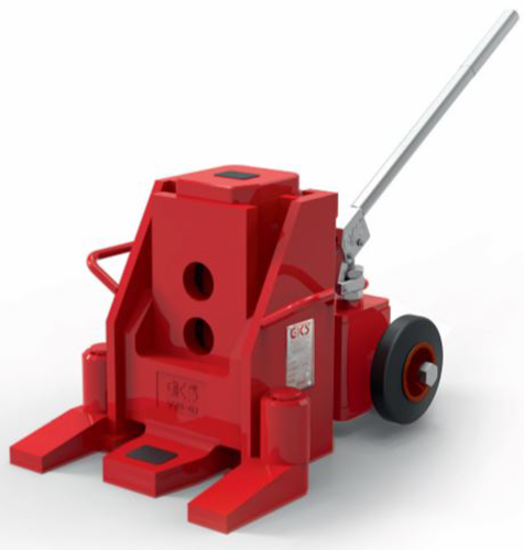

GKS V20 Hydraulic Toe Jack, Capacity 44,000 lbs, Part No. 1-10184

Manufacturer: GKS-Perfekt

Availability: In stock

SKU: 1-10184

Manufacturer part number: 1-10184

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

$7,771.01

Qty:

Documents, Drawings, and Manuals

Specs

GKS Hydraulic Toe Jack Specs

Manual

GKS Hydraulic Toe Jack Manual

Product Specifications

Attribute name	Attribute value
Features	Part Number: 1-10184 Load Capacity: 44,000 lbs. / 200kN (20 t) Loading Height: Toe Min: 1.2 in. / 30 mm Toe Max: 6.7 in. / 170 mm Top Plate: 12.8 in. / 325 mm Lifting Height: 6.3 in. / 160 mm Lifting Toe Positions: 3 Working Pressure: 7,542 psi / 520 bar Top Plate (L x W): 4.6 x 4.2 in. / 120 x 110 mm Dimensions (L x W x H): 16.7 x 12.8 x 12.8 in. / 425 x 325 x 325 mm Weight: 159 lbs. / 72 kg Easy-to-use, sturdy, and self-contained hydraulic jack is the ideal solution for lifting equipment in a range of environments. Adjustable die-forged toe and extended feet offer more stability and flexibility than a standard jack. Full load capacity on top plate and toe. Peg on the back of the toe secures correct insertion. Includes a safety valve for overload protection and a release valve to lower loads precisely and carefully. Ability to operate with a manual lift or a hydraulic pump. Built with high-grade materials and precision guide-ways. Extremely low loading height. Nonslip friction pad on the head of the jack. Wheels for easy transport. Simplified Design — less parts, less problems.
