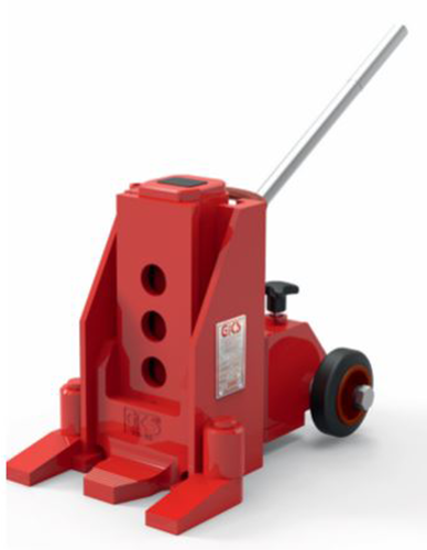

GKS V10 Hydraulic Toe Jack, Capacity 22,000 lbs, Part No. 1-10182

Manufacturer: GKS-Perfekt

Availability: In stock

SKU: 1-10182

Manufacturer part number: 1-10182

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

$4,271.86

Qty:

Documents, Drawings, and Manuals

Specs

GKS Hydraulic Toe Jack Specs

Manual

GKS Hydraulic Toe Jack Manual

Product Specifications

Attribute name	Attribute value
Features	Part Number: 1-10182 Load Capacity: 22,000 lbs. / 100kN (10 t) Loading Height: Toe Min: 0.8 in. / 20 mm Toe Max: 6.9 in. / 175 mm Top Plate: 12.2 in. / 310 mm Lifting Height: 6.3 in. / 160 mm Lifting Toe Positions: 4 Working Pressure: 7,542 psi / 520 bar Top Plate (L x W): 3.1 x 2.8 in. / 80 x 72 mm Dimensions (L x W x H): 14 x 10.2 x 12.2 in. / 357 x 260 x 310 mm Weight: 71 lbs. / 32 kg Easy-to-use, sturdy, and self-contained hydraulic jack is the ideal solution for lifting equipment in a range of environments. Adjustable die-forged toe and extended feet offer more stability and flexibility than a standard jack. Full load capacity on top plate and toe. Peg on the back of the toe secures correct insertion. Includes a safety valve for overload protection and a release valve to lower loads precisely and carefully. Ability to operate with a manual lift or a hydraulic pump. Built with high-grade materials and precision guide-ways. Extremely low loading height. Nonslip friction pad on the head of the jack. Wheels for easy transport. Simplified Design — less parts, less problems.
