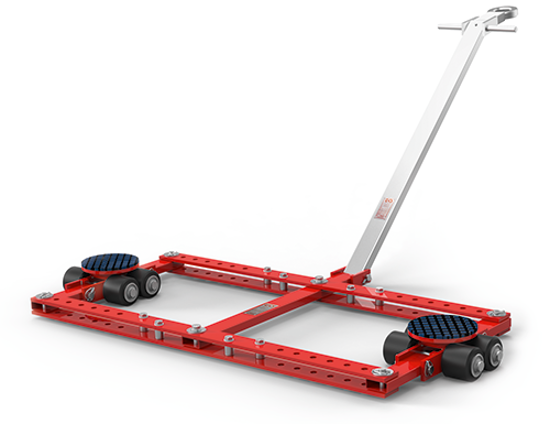

GKS TL6 Leading Tandem Dolly, Capacity 13,200 lbs, Part No. 5-10229

Manufacturer: GKS-Perfekt

Availability: In stock

SKU: 5-10229

Manufacturer part number: 5-10229

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

$2,831.81

Qty:

Documents, Drawings, and Manuals

Specs

GKS Transport Dolly Specs

Manual

GKS Transport Dolly Manual

Product Specifications

Attribute name	Attribute value
Features	Part Number: 5-10229 Load Capacity: 13,200 lbs. / 60kN (6 t) Loading Height: 4.3 in. / 110 mm No. of Wheels: 8 @ 3.3 x 3.3 in. / 85 x 85 mm Swivel Plates (2 ea.): 6.7 in. / 170 mm Steering Angle: ± 50° Steering Rod: 37.8 in. / 960 mm Connecting Bar: 19.7 - 45.3 in. / 500 - 1150 mm Dimensions (L x W): 56 x 30 in. / 1420 x 760 mm Weight: 120 lbs. / 54 kg Steerable and width-adjustable dolly with 2 turntables as supporting points for the transport of loads. Designed to serve as the front support of load-moving systems. Features a pulling handle with tow eye and swivel plates to facilitate steering. Dolly is dismountable and can be then used as 2 separate steerable dollies. The ideal solution for transporting machines, frame structures, and bulky goods that require four-point support for optimal stability. Low-profile frame keeps loads close to the ground for a safe, low center of gravity and low head clearance. Rollers do not mark floors and provide low rolling resistance and high stability. Thick, grooved rubber pads to prevent load slippage. Resistant powder coating for long lasting finish. Simplified Design — less parts, less problems.
