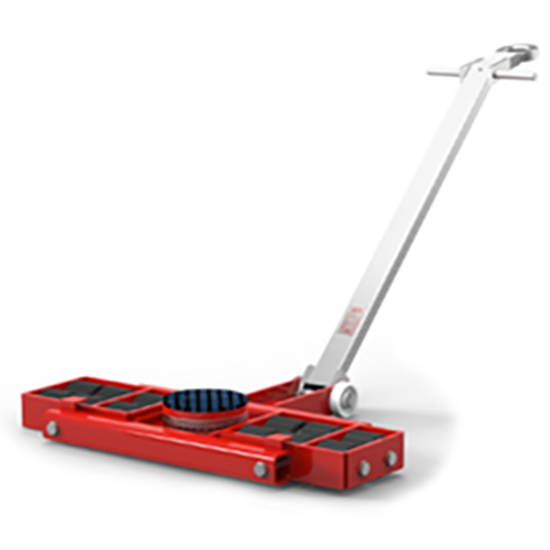

| Features | - Part Number: 3-11071
- Load Capacity: 19,800 lbs. / 90kN (9 t)
- Loading Height: 4.3 in. / 110 mm
- No. of Wheels: 12 @ 3.3 x 3.3 in. / 85 x 85 mm
- Swivel Plate: 6.7 in. / 170 mm
- Steering Angle: ± 90°
- Steering Rod: 37.4 in. / 950 mm
- Dimensions (L x W): 33.1 x 23 in. / 840 x 583 mm
- Weight: 130 lbs. / 59 kg
- Transports heavy loads through small spaces, maneuvers around tight turns, and reliably supports your facility’s needs.
- Features a swivel top and a pulling handle with tow eye for safe front steering support of load-moving systems.
- Designed as part of a stable, three-point system for effortless moving of all kinds of heavy loads in manufacturing facilities, shops, and warehouses.
- Traditional set consists of a steerable lead dolly ('L dolly') and a following dolly ('F dolly').
- Three-point dolly system is made not to slip out, even under pulling and tugging forces.
- Low-profile frame keeps loads close to the ground for a safe, low center of gravity and low head clearance.
- Rollers do not mark floors and provide low rolling resistance and high stability.
- Thick, grooved rubber pads to prevent load slippage.
- Resistant powder coating for long lasting finish.
- Simplified Design — less parts, less problems.
|
