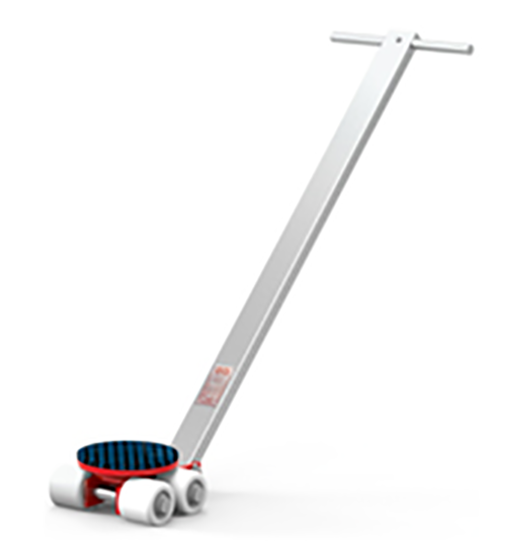

GKS L2 Leading Transport Dolly, Capacity 4,400 lbs, Part No. 3-10205

Manufacturer: GKS-Perfekt
SKU: 3-10205
Manufacturer part number: 3-10205
Lead Time: typically ships in 5-7 business days
$422.00
Documents, Drawings, and Manuals
Product Specifications
Features
  • Part Number: 3-10205
  • Load Capacity: 4,400 lbs. / 20kN (2 t)
  • Loading Height: 4.0 in. / 100 mm
  • No. of Wheels: 4 @ 3 x 2.6 in. / 75 x 66 mm
  • Swivel Plate: 6.7 in. / 170 mm
  • Steering Angle: ± 90°
  • Steering Rod: 37.4 in. / 950 mm
  • Dimensions (L x W): 9.2 x 8.8 in. / 235 x 225 mm
  • Weight: 24 lbs. / 11 kg
  • Transports heavy loads through small spaces, maneuvers around tight turns, and reliably supports your facility’s needs.
  • Features a swivel top and pulling handle for safe front steering support of load-moving systems.
  • Designed as part of a stable, three-point system for effortless moving of all kinds of heavy loads in manufacturing facilities, shops, and warehouses.
  • Traditional set consists of a steerable lead dolly ('L dolly') and a following dolly ('F dolly').
  • Three-point dolly system is made not to slip out, even under pulling and tugging forces.
  • Low-profile frame keeps loads close to the ground for a safe, low center of gravity and low head clearance.
  • Rollers do not mark floors and provide low rolling resistance and high stability.
  • Thick, grooved rubber pads to prevent load slippage.
  • Resistant powder coating for long lasting finish.
  • Simplified Design — less parts, less problems.
