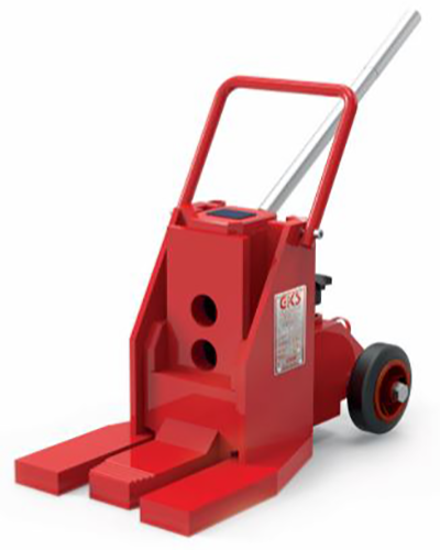

GKS G5 Forklift Toe Jack, Capacity 11,000 lbs, Part No. 1-10189

Manufacturer: GKS-Perfekt

Availability: In stock

SKU: 1-10189

Manufacturer part number: 1-10189

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

$3,284.02

Qty:

Documents, Drawings, and Manuals

Specs

GKS Hydraulic Toe Jack Specs

Product Specifications

Attribute name	Attribute value
Features	Part Number: 1-10189 Load Capacity: 11,000 lbs. / 50kN (5 t) Loading Height: Toe Min: 1.2 in. / 30 mm Lifting Height: 5.5 in. / 140 mm Lifting Toe Positions: 3 Working Pressure: 7,542 psi / 520 bar Top Plate (L x W): 2.7 x 2.4 in. / 68 x 60 mm Dimensions (L x W x H): 15.6 x 10 x 10.4 in. / 397 x 255 x 265 mm Weight: 66 lbs. / 30 kg Easy-to-use, sturdy, and self-contained hydraulic jack is the ideal solution for lifting equipment in a range of environments. Specially designed for maintenance purposes on forklift trucks and other industrial vehicles. Outstanding stability due to solid feet and an extended, grooved safety toe. Full load capacity on top plate and toe. Peg on the back of the toe secures correct insertion. Includes a safety valve for overload protection and a release valve to lower loads precisely and carefully. Ability to operate with a manual lift or a hydraulic pump. Built with high-grade materials and precision guide-ways. Extremely low loading height. Nonslip friction pad on the head of the jack. Wheels for easy transport. Simplified Design — less parts, less problems.
