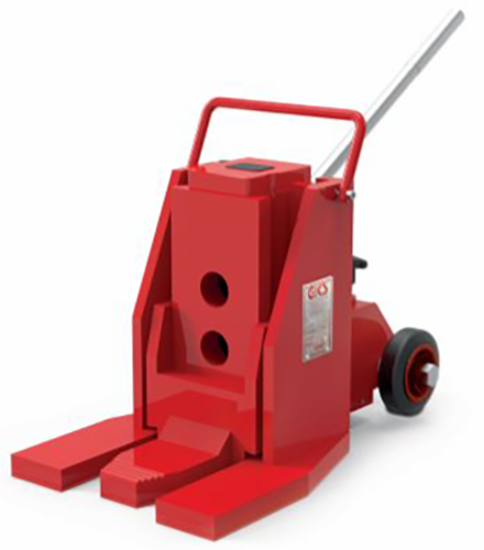

GKS G10 Forklift Toe Jack, Capacity 22,000 lbs, Part No. 1-12378

Manufacturer: GKS-Perfekt
SKU: 1-12378
Manufacturer part number: 1-12378
Lead Time (subject to change, call to verify): typically ships in 5-7 business days
$4,919.44
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Part Number: 1-12378
  • Load Capacity: 22,000 lbs. / 100kN (10 t)
  • Working Pressure: 7,542 psi / 520 bar
  • Lifting Toe Positions: 3
  • Lifting Height: 5.5 in. / 140 mm
  • Loading Height:
    • Toe Min: 1.4 in. / 35 mm
  • Top Plate (L x W): 4.3 x 3.5 in. / 110 x 90 mm
  • Dimensions (L x W x H): 18.1 x 11 x 12.5 in. / 461 x 280 x 318 mm
  • Weight: 127 lbs. / 57 kg
  • Easy-to-use, sturdy, and self-contained hydraulic jack for lifting loads with low clearance.
  • Specially designed for maintenance purposes on forklift trucks and other industrial vehicles.
  • Outstanding stability due to solid feet and an extended, grooved safety toe.
  • Extremely low loading height, starting from 1.2 inches.
  • Simplified Design — less parts mean less problems.
  • Height adjustable, die-forged safety toe.
  • Precision guideways.
  • Wheels for easy transport.
  • Full load capacity on top plate and toe.
  • Ability to operate with a manual lift or a hydraulic pump.
  • Nonslip friction pad on the head of the jack.
  • Peg on the back of the toe secures correct insertion.
  • Includes a release valve that allows loads to be lowered precisely and carefully, plus a safety valve for overload protection.
