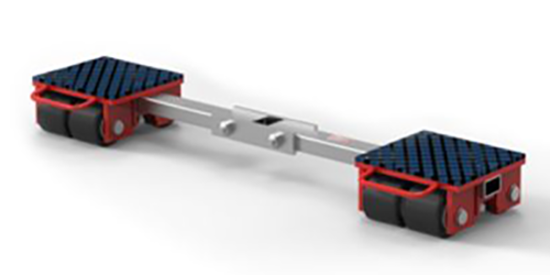

GKS F6 Following Transport Dolly, Capacity 13,200 lbs, Part No. 3-10208

Manufacturer: GKS-Perfekt

Availability: In stock

SKU: 3-10208

Manufacturer part number: 3-10208

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

$1,925.19

Qty:

Documents, Drawings, and Manuals

Specs

GKS Transport Dolly Specs

Manual

GKS Transport Dolly Manual

Product Specifications

Attribute name	Attribute value
Features	Part Number: 3-10208 Load Capacity: 13,200 lbs. / 60kN (6 t) Loading Height: 4.3 in. / 110 mm No. of Wheels: 8 @ 3.3 x 3.3 in. / 85 x 85 mm Contact Surface per Cartridge: 7.9 x 8.7 in. / 200 x 220 mm Connecting Bar: 25.2 - 40.6 in. / 640 - 1030 mm Weight: 64 lbs. / 29 kg Straight-line dolly that serves as the stable rear axle of load-moving systems. Features a connection bar (included with purchase) that can be adjusted to distribute weight and fit under heavy loads of a wide range of widths. Designed as part of a stable, three-point system for effortless moving of all kinds of heavy loads in manufacturing facilities, shops, and warehouses. Traditional set consists of a steerable lead dolly ('L dolly') and a following dolly ('F dolly'). Three-point dolly system is made not to slip out, even under pulling and tugging forces. Low-profile frame keeps loads close to the ground for a safe, low center of gravity and low head clearance. Rollers do not mark floors and provide low rolling resistance and high stability. Thick, grooved rubber pads to prevent load slippage. Resistant powder coating for long lasting finish. Simplified Design — less parts, less problems.
