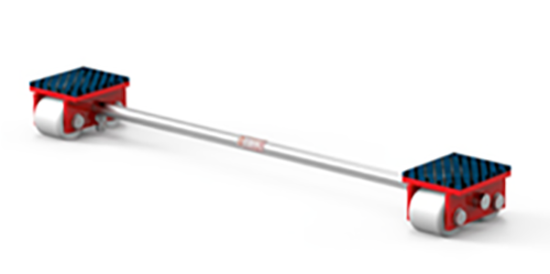

GKS F2 Following Transport Dolly, Capacity 4,400 lbs, Part No. 3-10204

Manufacturer: GKS-Perfekt

Availability: In stock

SKU: 3-10204

Manufacturer part number: 3-10204

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

$814.42

Qty:

Documents, Drawings, and Manuals

Specs

GKS Transport Dolly Specs

Manual

GKS Transport Dolly Manual

Product Specifications

Attribute name	Attribute value
Features	Part Number: 3-10204 Load Capacity: 4,400 lbs. / 20kN (2 t) Loading Height: 4.0 in. / 100 mm No. of Wheels: 4 @ 3 x 2.6 in. / 75 x 66 mm Contact Surface per Cartridge: 5.5 x 4.7 in. / 140 x 120 mm Connecting Bar: 9.5 - 39.3 in. / 240 - 1000 mm Weight: 27 lbs. / 12 kg Straight-line dolly that serves as the stable rear axle of load-moving systems. Features a connection bar (included with purchase) that can be adjusted to distribute weight and fit under heavy loads of a wide range of widths. Designed as part of a stable, three-point system for effortless moving of all kinds of heavy loads in manufacturing facilities, shops, and warehouses. Traditional set consists of a steerable lead dolly ('L dolly') and a following dolly ('F dolly'). Three-point dolly system is made not to slip out, even under pulling and tugging forces. Low-profile frame keeps loads close to the ground for a safe, low center of gravity and low head clearance. Rollers do not mark floors and provide low rolling resistance and high stability. Thick, grooved rubber pads to prevent load slippage. Resistant powder coating for long lasting finish. Simplified Design — less parts, less problems.
