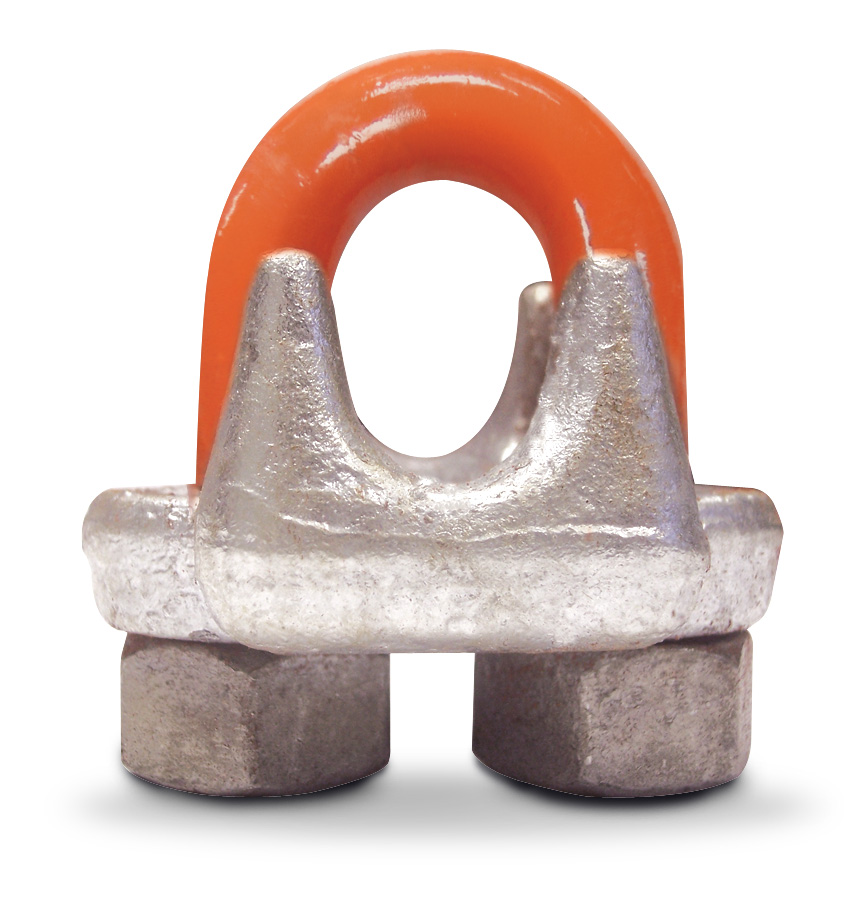

CM Wire Rope Clip, Dia. 3/4 in., Part No. M252

Availability: In stock

SKU: M252

Manufacturer part number: M252

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

$26.34

Qty:

Documents, Drawings, and Manuals

Brochure

CM Rigging Clips Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: M252 Size: 3/4 in. Torque: 130 ft./lbs. Rope Turnback: 18 in. Thread: 5/8-11UNC Weight: 1.53 lbs. Clip Type: U-Bolt Used to secure the end of wire rope when forming a loop; i.e., for wire rope turn-back. Precision manufactured and galvanized to meet federal specifications (FF-C-450 Type 1 Class 1) on 1/4 in. and larger. Drop forged base. Galvanized finish.
