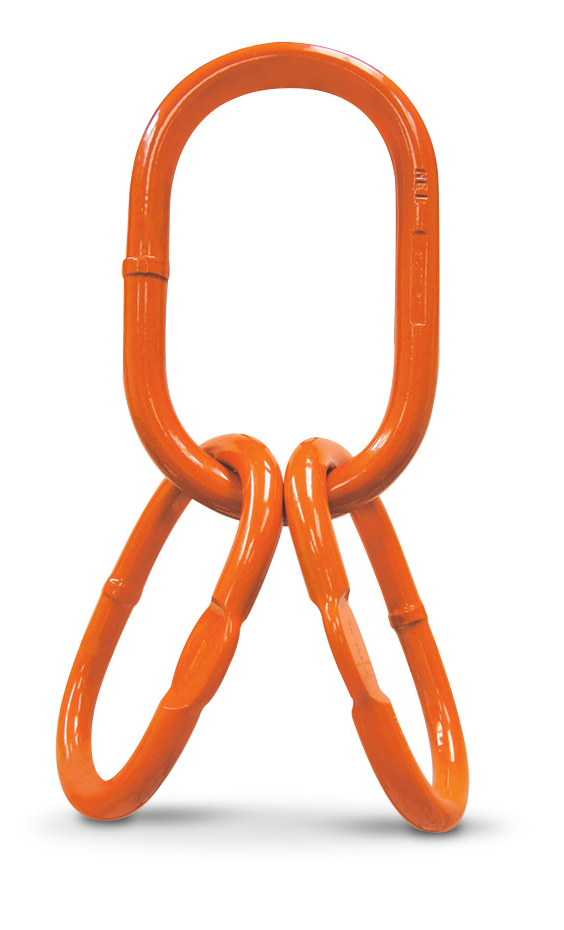

CM Wide Body Sub-Assembly with Flats, Working Load Limit 5,750 lbs., Part No. ML050SA

Manufacturer: CM (Columbus McKinnon)

Availability: In stock

SKU: ML050SA

Manufacturer part number: ML050SA

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

$155.39

Qty:

Documents, Drawings, and Manuals

Brochure

CM Lifting Links Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: ML050SA Trade Size: 1/2 in. Working Load Limit (Chain): 5,750 lbs. Working Load Limit (Wire Rope/Synthetic): 4,600 lbs. Master Link Diameter: 0.56 in. Master Link Inside Length: 4.84 in. Master Link Inside Width: 2.69 in. Intermediate Link Diameter: 0.44 in. Intermediate Link Inside Length: 4.13 in. Intermediate Link Inside Width: 2.29 in. Weight: 1.8 lbs. Herc-Alloy 800. Designed to accept Herc-Alloy 800 chain, wire rope, and synthetic attachments. Designed primarily for constructing slings with multiple branches using mechanical couplers between the welded master couplers and the chain branches. Extra wide body is ideal for wire rope applications. Durable orange powder coated finish. May be used for mechanical and welded sling assemblies. 100% proof tested. 6:1 design factor. Can be used with included angles up to 120°.
