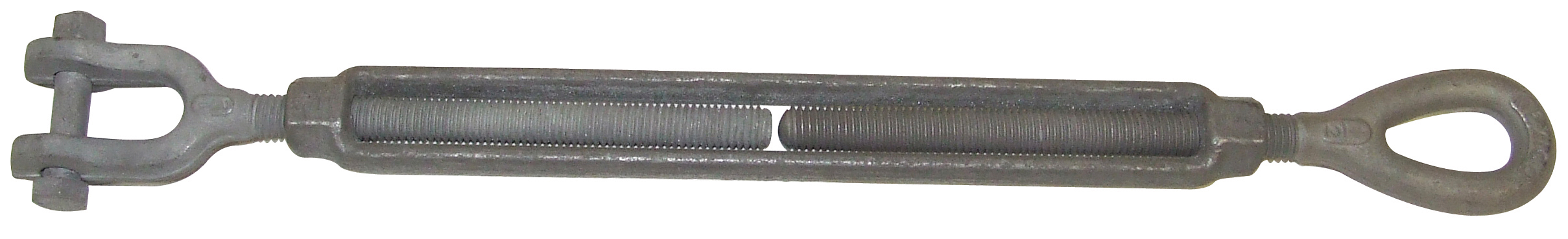

CM Turnbuckle, Jaw/Eye, Working Load Limit 5,200 lbs., Part No. 1212JE

Manufacturer: CM (Columbus McKinnon)

SKU: 1212JE

Manufacturer part number: 1212JE

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

$134.31

Qty:

Documents, Drawings, and Manuals

Brochure

CM Turnbuckles Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: 1212JE End Fittings: Jaw & Eye Thread Diameter: 3/4 in. Take Up: 12 in. Working Load Limit: 5,200 lbs. Weight: 5.7 lbs. Turnbuckles provide easy means for tensioning, loosening, and removing chain and rope load lines. Turnbuckles can be used to apply tension to wire rope or cable. Composed of a forged body and two end fittings. End fittings can be eyes, jaws, or hooks. Design factor 5:1. Must only be applied to loads within their working load limit as specified for the particular end fitting being applied. Apply turnbuckles in a straight in-line manner only. Do not allow anything to contact the turnbuckle body or end attachment threaded shanks. Apply load to the center of end attachment eyes and bowl of hooks. Do not tip load hooks or side load eyes.
