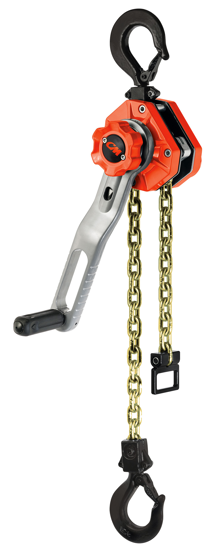

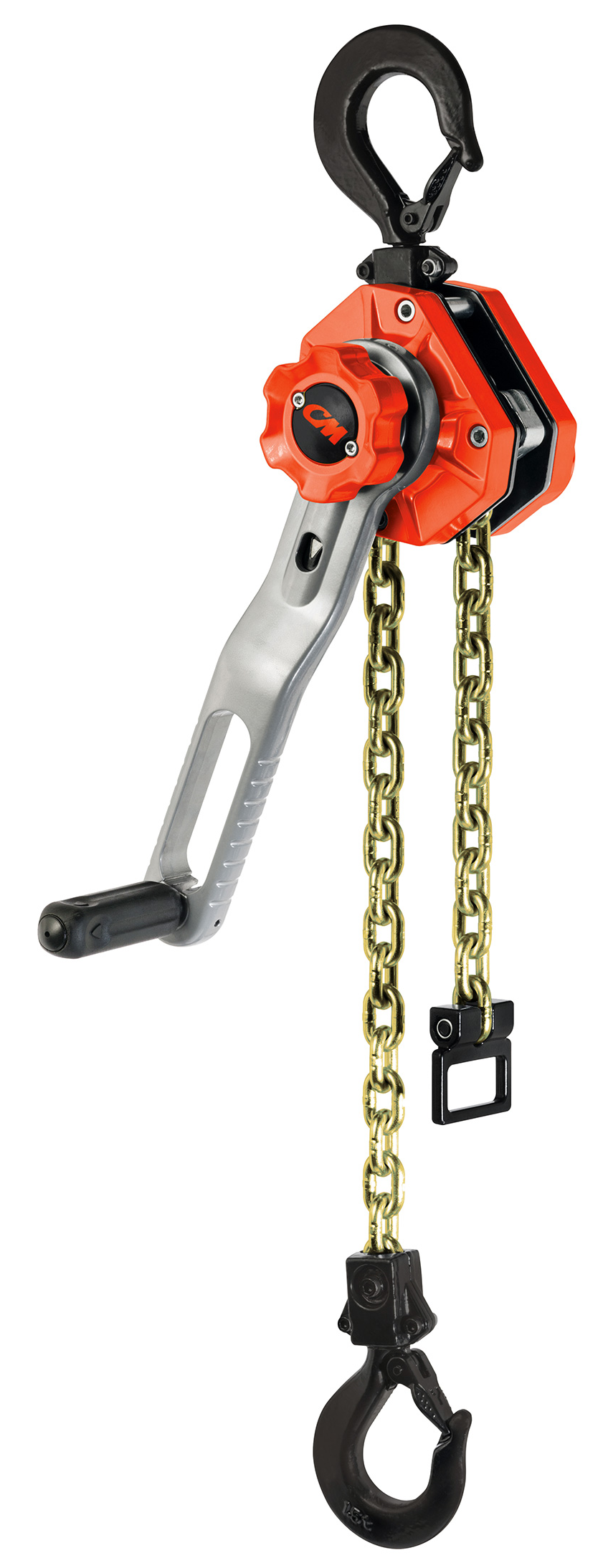

CM Tornado 360 Hand Crank/Lever Hoist, Capacity 3/4 Ton, Model No TOR075

Manufacturer: CM (Columbus McKinnon)
Availability: In stock
SKU: TOR075-CUST
Manufacturer part number: TOR075-CUST
Lead Time (subject to change, call to verify): typically ships in 2-3 business days
*
$484.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Specifications
Attribute nameAttribute value
Features
  • Mfg: Columbus McKinnon (CM)
  • Model No.: TOR075
  • Capacity: 3/4-ton (1,500 lbs.)
  • Pull Force at Rated Load: Hand Crank - 38.2 lb./ft. (17.3 kg./ft.) | Lever - 47.2 lb./ft. (21.4 kg./ft.)
  • Weight: 14.6 lbs. (6.62 kg)
  • Headroom: 12.60 in. (320 mm)
  • Built to Last: Lightweight aluminum housing withstands rigorous use and features high-quality, long-lasting bearings. Powder coat finish provides extra protection in harsh environments.
  • Corrosion Protection: Robust chain guide and chain stripper made from cast steel and zinc-plated for corrosion protection. 100% Load Tested Gold Chromate Chain (Canadian units feature corrosion-resistant, zinc-plated chain.)
  • Sidewinder Lever Handle: This first-of-its-kind lever handle design will revolutionize the ratchet lever hoist industry. Its unique foldable handle and 360° rotating lever increases productivity while reducing the risk of operator injury.
  • Convenient Directional Indicator: Easy-to-use, highly visible directional indicator located on the handle clearly shows the operating direction as lifting, lowering or neutral.
  • Easy and Smooth Free Chaining: For quick take-up and positioning of slack chain - even with one hand. Designed not to accidentally free chain while under load. Cast chain end stop allows the user to easily position the chain in free-chaining mode and prevents it from entering the liftwheel and jamming the hoist.
  • Swivel Hooks: Bolt-on hooks with nylon locks help users comply with ASME B30.21 and B30.10 inspection requirements. Hooks are forged, allowing them to yield under overload without breaking. Cast safety latches provide positive and secure load engagement.
  • Positive Load Control: Enclosed Weston-type brake stays clean and dry for precise load positioning.
  • Certification: Meets ASME B30.21
WarrantyLifetime Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSRE's repair facility.)
Country of OriginMade in the USA
