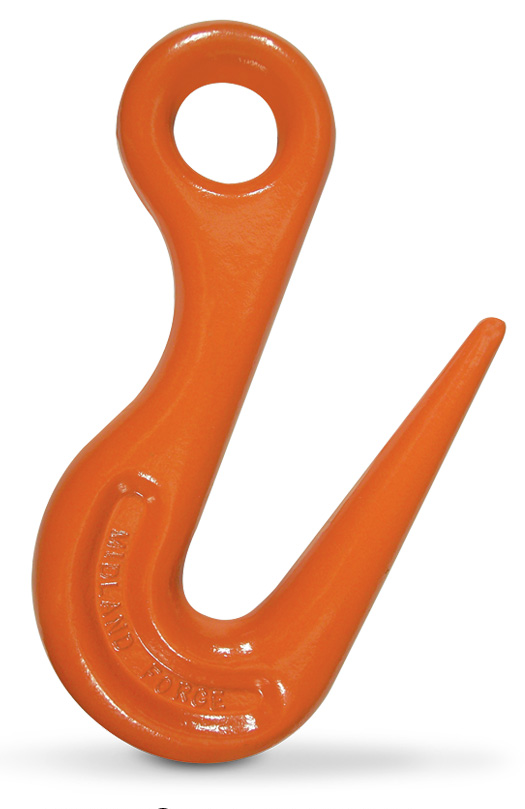

CM Sorting Hook, Part No. M129

Manufacturer: CM (Columbus McKinnon)

Availability: In stock

SKU: M129

Manufacturer part number: M129

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

$127.73

Qty:

Documents, Drawings, and Manuals

Brochure

CM Rigging Hooks Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: M129 Working Load Limit at Tip: 2 Tons Working Load Limit at Bottom of Hook: 7-1/2 Tons Weight: 6.8 lbs. Designed to lift and move material with long narrow throat openings. Herc-Alloy 800. 5:1 design factor. Quench and tempered alloy steel. Long tapered point designed for easy grab in rings, pear links, eye bolts, or lifting holes. Durable orange powder coated finish. May be loaded within 1 in. of the tip. The working load limit with the load sitting in the bowl (or saddle) of the the hook is 7-1/2 tons, whereas the working load limit is 2 tons if the hook is being loaded 1 in. from the tip. DO NOT LOAD THE LAST ONE INCH OF THE TIP.
