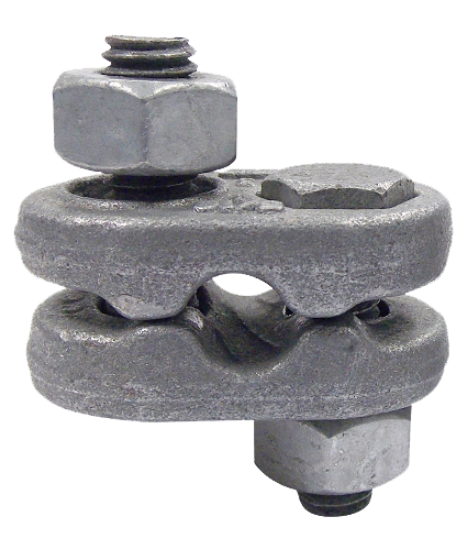

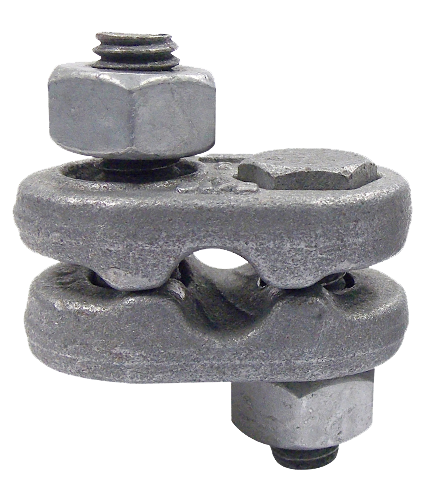

CM Mid-Grip Wire Rope Clip, Dia. 5/16 in., Part No. M2547 (Pack of 2)

Manufacturer: CM (Columbus McKinnon)

Availability: In stock

SKU: M2547-2

Manufacturer part number: M2547-2

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

$37.00

Qty:

Documents, Drawings, and Manuals

Brochure

CM Rigging Clips Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: M2547 Size: 5/16 in. Torque: 30 ft./lbs. Rope Turnback: 5 in. Thread: 3/8-16UNC Weight: 0.38 lbs. Clip Type: Mid-Grip Designed for applications in the scaffolding industry. Features a hexagon bolt head that fits securely into a forged, hex-shaped socket that prevents spinning even after repeated use and re-torquing. Precise threading on bolt and nut ensures tight alignment and exceptional strength. Hex bolt is knurled and machine pressed into socket to securely couple with the saddle, reducing the number of loose parts. Sight window/notch on top of mid-grip allows for easy inspection of the bolts. Allows for full arc wrench swing for quicker installation, retightening and disassembly. Saddles are made of forged steel for strength and wearability. Full assembly is mechanical galvanized per ASTM B695-04 Class 25 Type 1. Size, manufacturer and trace code are clearly marked on the saddle for easy identification. Meets or exceeds performance requirements of FF-C-450 specifications, Type III, Class 1 and will provide maximum holding strength.
