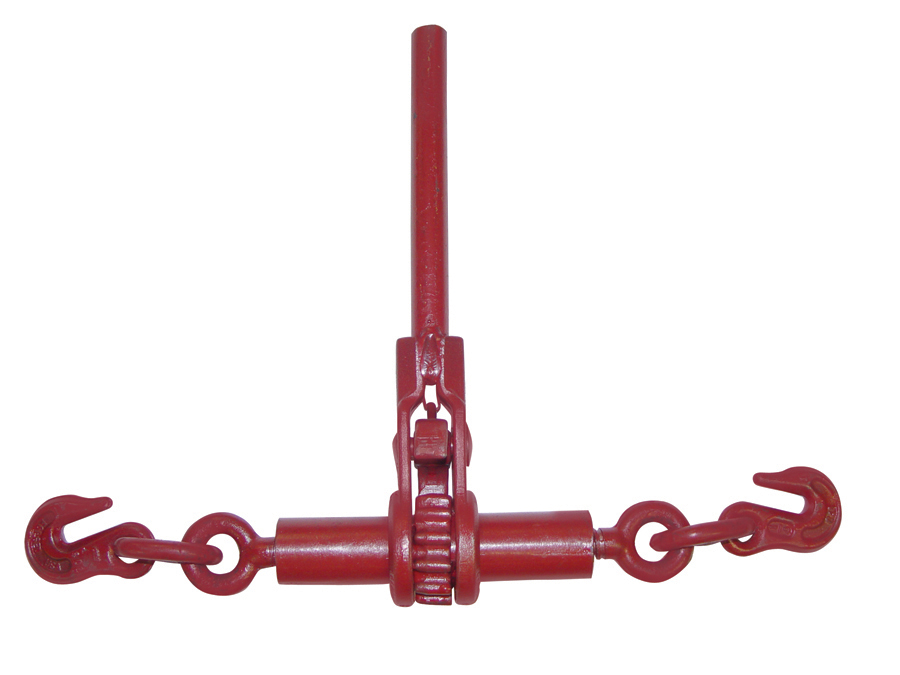

CM Forged Ratchet Load Binder, Working Load Limit 2,600 lbs., 1/4 in. Grade 43, Part No. 48364

Manufacturer: CM (Columbus McKinnon)

SKU: 48364

Manufacturer part number: 48364

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

$173.75

Qty:

Documents, Drawings, and Manuals

Brochure

CM Load Binders Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: 48364 Working Load Limit: 2,600 lbs. Take Up: 4 in. Handle Length: 12 in. Screw Diameter: 5/8 in. Weight: 5.4 lbs. Chain Grade & Size: G30: 3/16 & 1/4 in. G43: 1/4 in. Utilize a screw or rotating motion to tighten and secure loads. Tighten slower but are easier to operate than lever-type load binders. Do not require a handle to lock in place to ensure the binder stays tightened. Handle is designed using a self-locking, open pawl allowing for easy removal of unwanted debris such as mud, snow, or ice. Proof tested to 50% of the minimum breaking strength. Gears are permanently welded to the barrel. Durable powder coated finish. Design factor 4:1 (except 48358 & 48387 which are 3:1).
