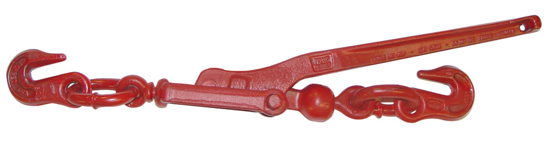

CM Forged Lever Load Binder, Working Load Limit 2,600 lbs., 1/4 in. Grade 43, Part No. 48304

SKU: 48304

Manufacturer part number: 48304

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

$114.07

Qty:

Documents, Drawings, and Manuals

Brochure

CM Load Binders Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: 48304 Working Load Limit: 2,600 lbs. Handle Take Up: 3.75 in. Handle Length: 11.25 in. Weight: 3.0 lbs. Chain Grade & Size: G30: 1/4 in. G43: 1/4 in. Utilizes mechanical advantage to reduce the manpower required to secure a load. Tension can be applied and released quickly. When securement is complete, the lever stores in line with load. All components are forged, not cast. Forged binders are lighter and stronger than cast binders. Under equal force a forged handle will yield and bend while a cast handle may break. Design factor 4:1.
