CM Dual Rated Sub-Assembly, Working Load Limit 39,000 lbs., Part No. 555277

Manufacturer: CM (Columbus McKinnon)

Availability: In stock

SKU: 555277

Manufacturer part number: 555277

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

$352.89

Qty:

Documents, Drawings, and Manuals

Brochure

CM Lifting Links Brochure

Product Specifications

Attribute name	Attribute value

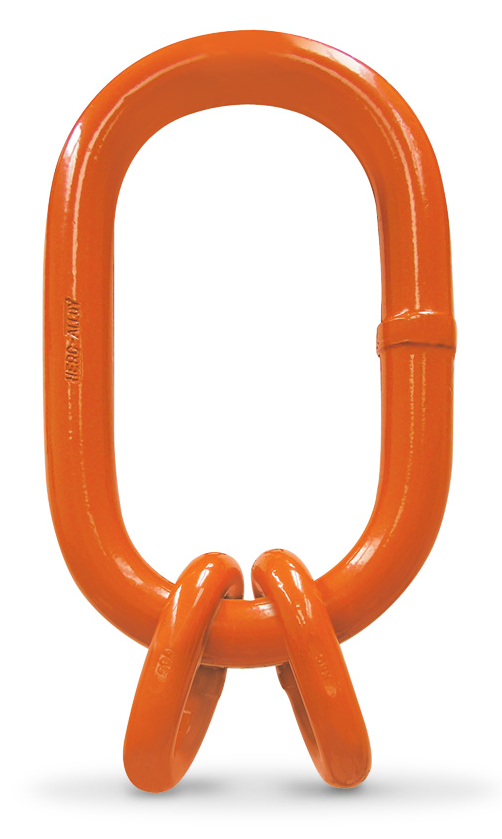

Features	Part Number: 555277 Trade Size: 1-1/4 in. Working Load Limit at 60°: 39,000 lbs. Master Link Diameter: 1.25 in. Master Link Inside Length: 8.75 in. Master Link Inside Width: 4.38 in. Intermediate Link Diameter: 0.91 in. Intermediate Link Inside Length: 3.13 in. Intermediate Link Inside Width: 1.75 in. Weight: 13.51 lbs. Dual Rated. Accepts both Herc-Alloy 1000 & 800 chain and components. Designed primarily for constructing slings with multiple branches using mechanical couplers between the welded master couplers and the chain branches. Designed for triple and quad branch Herc-Alloy chain slings. Consists of an oblong master link and two welded master coupling links. Durable orange powder coated finish. May be used for mechanical and welded sling assemblies. 100% proof tested. 4:1 design factor. Can be used with included angles up to 120°.
