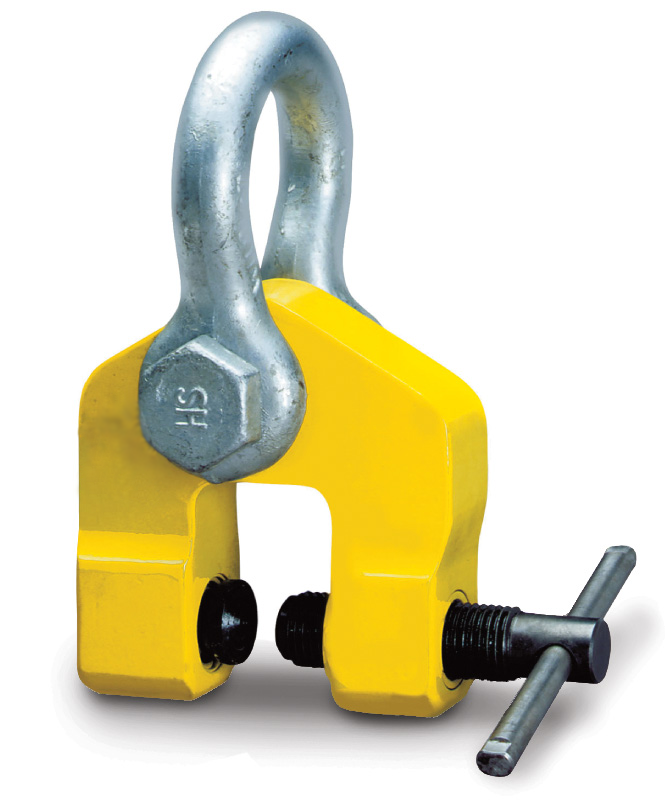

CM Camlok TSH Screw Clamp, Working Load Limit 6,600 lbs., Part No. TSH3000

Availability: In stock

SKU: TSH3000

Manufacturer part number: TSH3000

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Jaw Capacity

$1,880.33

Qty:

Documents, Drawings, and Manuals

Brochure

CM Lifting Clamps Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: TSH3000 Working Load Limit: 6,600 lbs. Jaw Capacity: 0 to 2 in. Weight: 24.3 lbs. TSH clamps are designed for pulling and holding sheet metal, girders, and related steel objects. Recommended for use with lever tools. Offer the best means of holding and securing loads - great for positioning. Primarily used as anchor points to allow fabrications to be pulled together and positioned during assembly or prior to welding. Supplied complete with an alloy shackle that allows for pulling 180°. High force screw threads. Hardened steel jaws. The clamps are attached by turning the screwed threaded axle. When load is applied to the clamp, the circular toothed pad pivots in a cam action, gripping the load. Swivel jaws increase grip if plate moves. Maximum hardness of material to lift should not exceed 300 Brinell (32HRc). Not recommended for lifting applications. 4:1 design factor.
