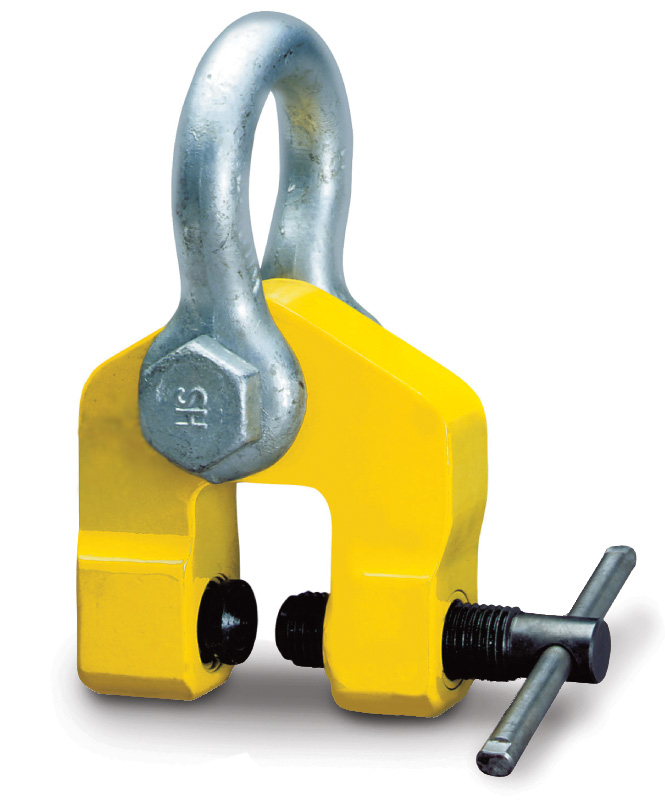

CM Camlok TSH Screw Clamp, Working Load Limit 3,300 lbs., Part No. TSH1500

Manufacturer: CM (Columbus McKinnon)
Availability: In stock
SKU: TSH1500
Manufacturer part number: TSH1500
Lead Time (subject to change, call to verify): typically ships in 7-10 business days
$1,588.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Part Number: TSH1500
  • Working Load Limit: 3,300 lbs.
  • Jaw Capacity: 0 to 1-1/4 in.
  • Weight: 15.4 lbs.
  • TSH clamps are designed for pulling and holding sheet metal, girders, and related steel objects.
  • Recommended for use with lever tools.
  • Offer the best means of holding and securing loads - great for positioning.
  • Primarily used as anchor points to allow fabrications to be pulled together and positioned during assembly or prior to welding.
  • Supplied complete with an alloy shackle that allows for pulling 180°.
  • High force screw threads.
  • Hardened steel jaws.
  • The clamps are attached by turning the screwed threaded axle.
  • When load is applied to the clamp, the circular toothed pad pivots in a cam action, gripping the load.
  • Swivel jaws increase grip if plate moves.
  • Maximum hardness of material to lift should not exceed 300 Brinell (32HRc).
  • Not recommended for lifting applications.
  • 4:1 design factor.
