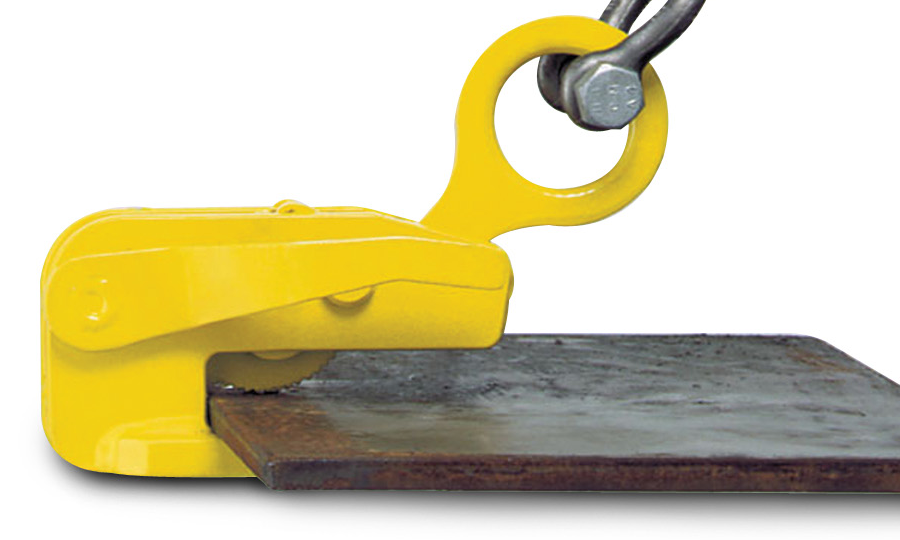

CM Camlok THS Plate Clamp, Working Load Limit 1,600 lbs., Part No. THS750

Manufacturer: CM (Columbus McKinnon)

SKU: THS750

Manufacturer part number: THS750

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Jaw Capacity

0 to 3/4 in.

$2,156.84

Qty:

Documents, Drawings, and Manuals

Brochure

CM Lifting Clamps Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: THS750 Working Load Limit (min.): 90 lbs. Working Load Limit (max.): 1,600 lbs. Jaw Capacity: 0 to 3/4 in. Weight: 6.6 lbs. THS Plate Clamps can be used with single or two leg slings with a maximum angle of 60°. The clamps are designed to be used on structural steel plates up to a surface hardness of 300 Brinell (32HRc), providing the plate can withstand the forces imposed. Spring/lever-operated mechanism securely locks the clamp onto the horizontally positioned plate. Do not use to lift stainless steel, lead, or copper. Can be used in single or 2 leg slings. Use lifting beams for longer plates. Clamp locks quickly onto the plate, enabling a single operator to set up the plate for lifting. Lifts and handles single sheet steel plates in the horizontal position. Useful for loading plates into guillotines, presses, punching machines and folding presses. Caution should be used so that maximum single angle of 60° is not exceeded. 4:1 design factor.
