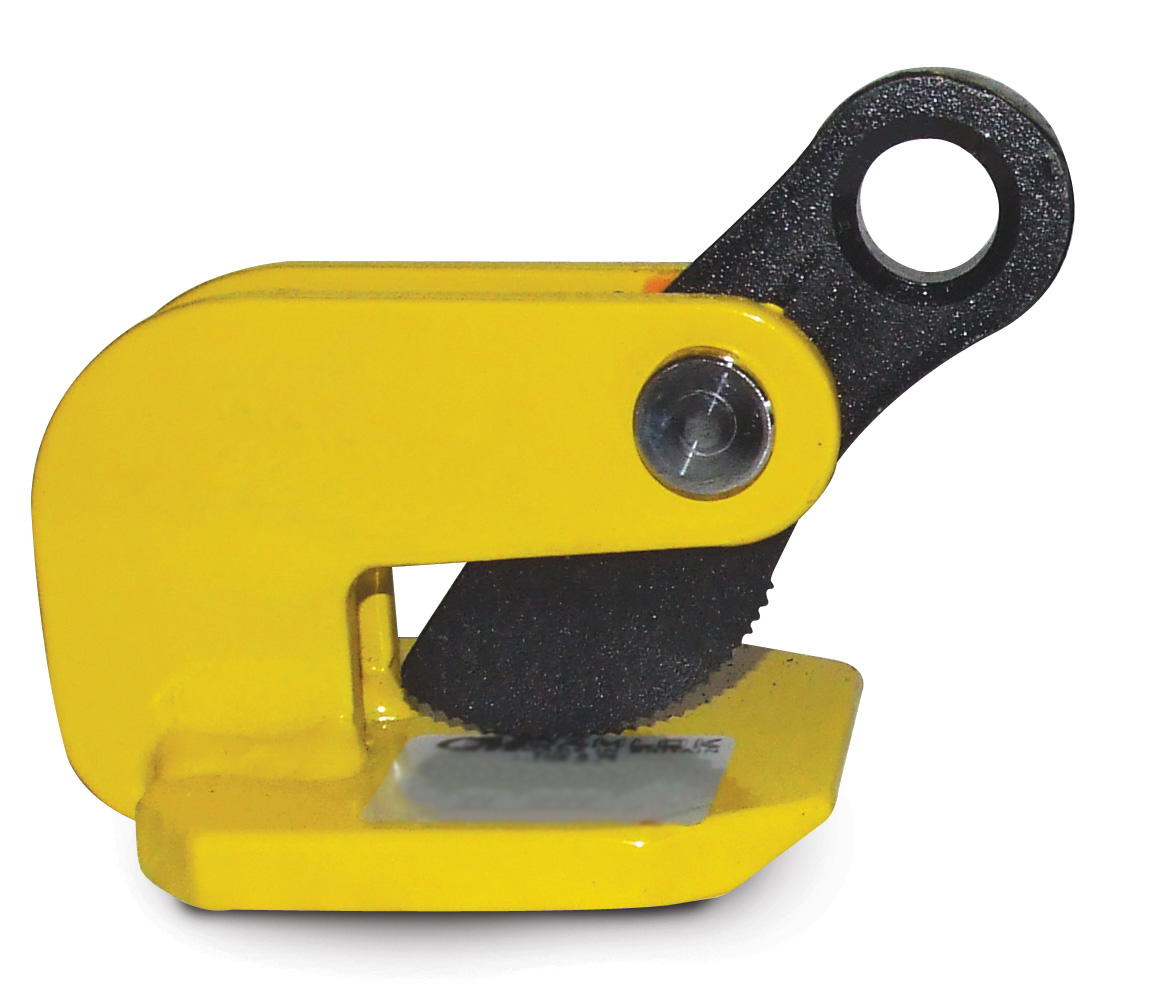

CM Camlok THK Horizontal Plate Clamp, Working Load Limit 13,200 lbs., Part No. THK6000

Manufacturer: CM (Columbus McKinnon)

SKU: THK6000

Manufacturer part number: THK6000

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

Plate Size

0 to 2-3/8 in.

$2,247.70

Qty:

Documents, Drawings, and Manuals

Brochure

CM Lifting Clamps Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: THK6000 Working Load Limit (min.): 700 lbs. Working Load Limit (max.): 13,200 lbs. Plate: 0 to 2-3/8 in. Weight (per pair): 50.7 lbs. THK Clamps have a jaw that pivots in the reverse direction to normal horizontal clamps and are designed to lift and handle thin sheet plates that tend to sag when being lifted. Designed to lift and transport thin steel plates in the horizontal position. The reverse jaw feature ensures that the grip of the clamp increases the more the plate deflects under its own self weight. Clamps are used in pairs with a two legged chain sling. Two pairs of clamps supported from a lifting beam must be used when handling long plates. Only lift one plate at a time. 4:1 design factor.
