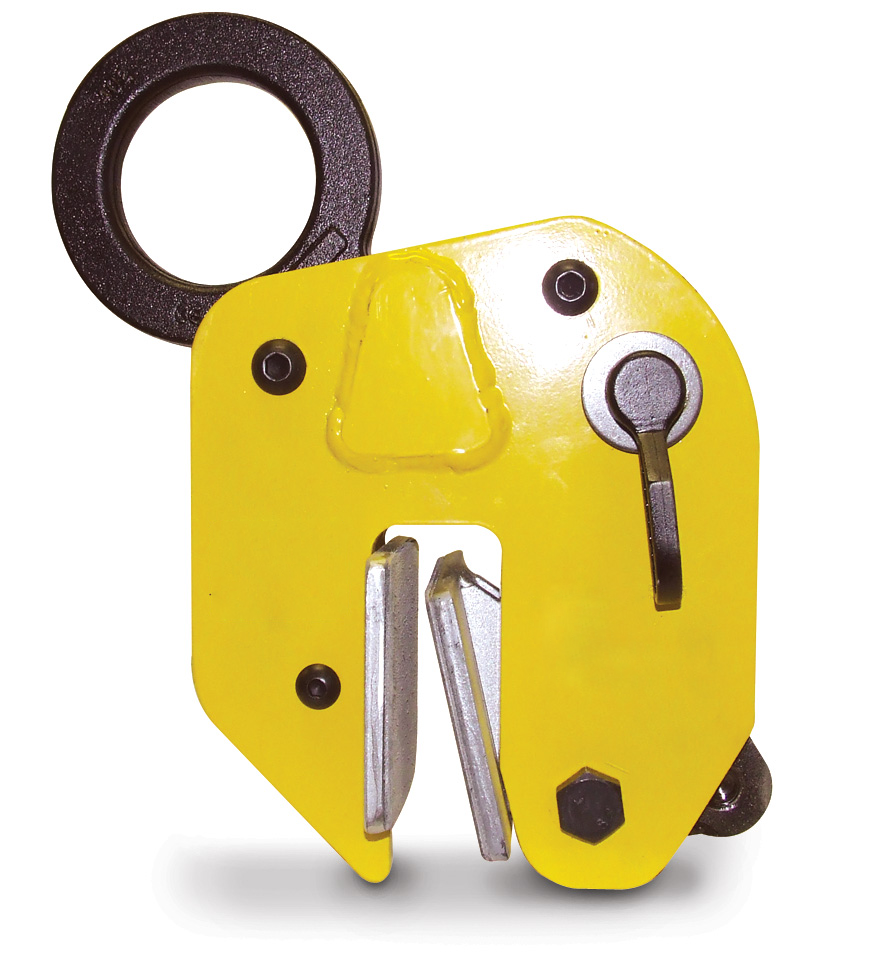

CM Camlok LJ Gentle Grip Clamp, Working Load Limit 3,300 lbs., Part No. LJ1500

Manufacturer: CM (Columbus McKinnon)
Availability: In stock
SKU: LJ1500
Manufacturer part number: LJ1500
Lead Time (subject to change, call to verify): typically ships in 7-10 business days
$1,314.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Part Number: LJ1500
  • Working Load Limit (min.): 400 lbs.
  • Working Load Limit (max.): 3,300 lbs.
  • Jaw Capacity: 0 to 3/4 in.
  • Weight: 26.5 lbs.
  • LJ Plate Clamps can be used to lift and turn all structural steel plates, including stainless steel, iron, and aluminum, without marking or damaging the surface.
  • Designed to lift thin-gauge steel plates, stainless steel, iron, timber, and aluminum without marring or damaging the surface.
  • Lifts plates from the horizontal to vertical position and vice versa through 180°.
  • The performance on the leather jaws is not affected by standing water so the clamp can be used with submerged plasma cutting machines.
  • The LJ clamp is suitable for surface hardness greater than 300 Brinell (32HRc).
  • Minimum load will not affect the LJ clamps as they do not have teeth for bite. However some load is required to combat friction in the clamp. Extra care must be taken when lifting plates in the lower 20% of their rated capacity. Thin plates are best lifted with the fixed jaw on top when performing a horizontal to vertical lift.
  • The clamp may not be suitable for lifting highly polished plates where the polish process may leave lubricating compounds.
  • 4:1 design factor.
