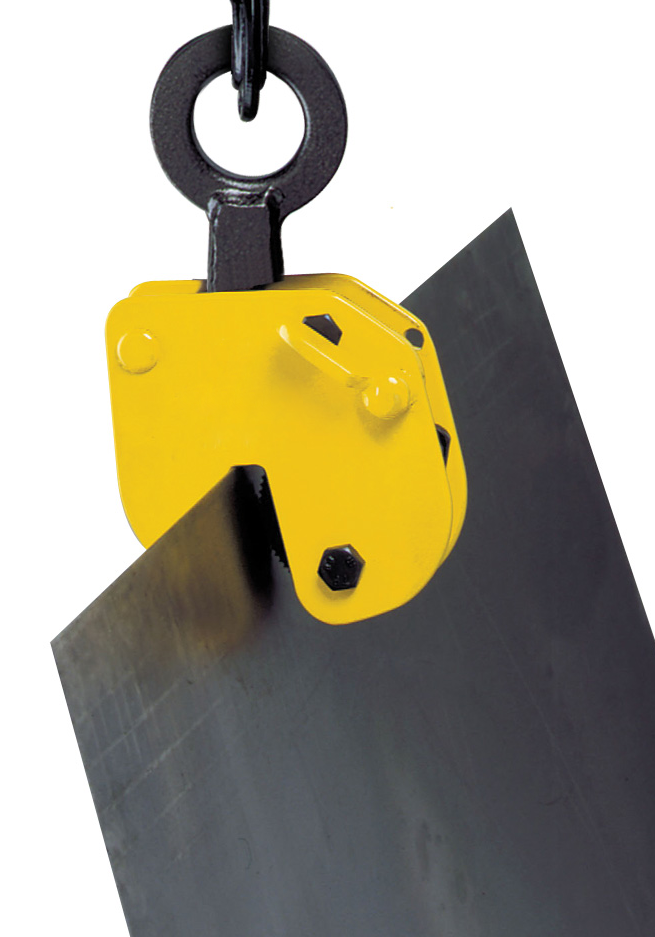

CM Camlok HG High Grip Plate Clamp, Working Load Limit 1,100 lbs., Part No. HG500

Manufacturer: CM (Columbus McKinnon)

SKU: HG500

Manufacturer part number: HG500

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Jaw Capacity

0 to 3/8 in.

$2,179.23

Qty:

Documents, Drawings, and Manuals

Brochure

CM Lifting Clamps Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: HG500 Working Load Limit (min.): 100 lbs. Working Load Limit (max.): 1,100 lbs. Jaw Capacity: 0 to 3/8 in. Weight: 11.0 lbs. HG High Grip Clamps are designed to give additional grip forces to products during lifting. The High Grip has an additional lever in the clamping mechanism thus asserting a higher gripping force on the plate being lifted. Can be used on hot rolled structural steel plates. Can be used to lift stainless steel plates or plates with hardened surfaces due to cold rolling. Smaller jaw range makes these clamps more efficient for lifting thinner steel. Suitable for hardness up to 371 Brinell (40 HRc). Can be used for lifting and turning plates from the horizontal to vertical position or vice versa, through 180°. Clamp has serrated teeth and will mark plate. Standard clamp is fitted with a hook ring but can be alternatively supplied with a short length of chain. 4:1 design factor.
