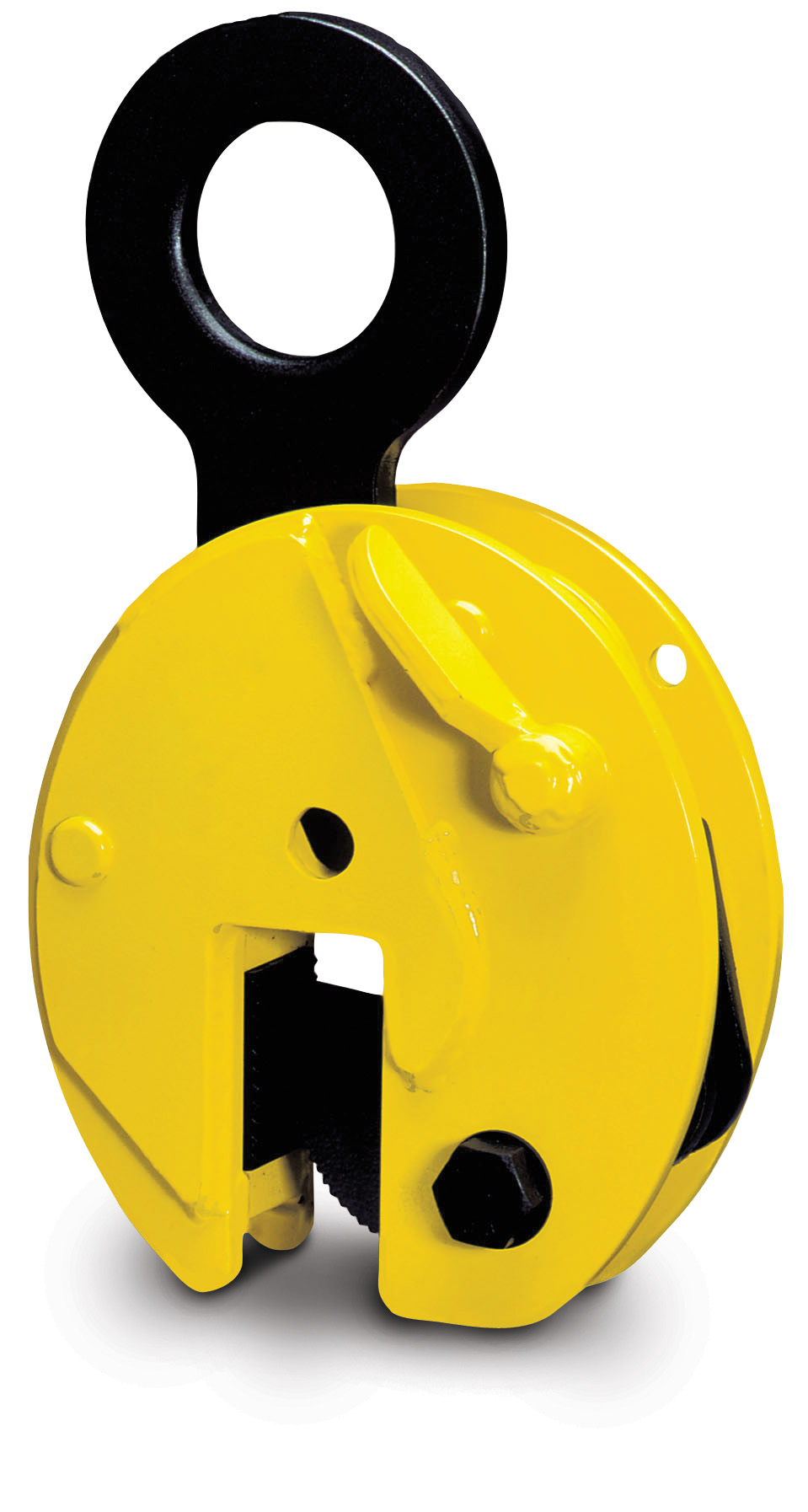

CM Camlok CZ Universal Plate Clamp, Working Load Limit 4,400 lbs., Part No. 92 2000

Manufacturer: CM (Columbus McKinnon)

SKU: 92 2000

Manufacturer part number: 92 2000

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Jaw Capacity

0 to 1-1/4 in.

$1,426.04

Qty:

Documents, Drawings, and Manuals

Brochure

CM Lifting Clamps Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: 92 2000 Working Load Limit (min.): 450 lbs. Working Load Limit (max.): 4,400 lbs. Jaw Capacity: 0 to 1-1/4 in. Weight: 17.6 lbs. CZ Plate Clamps can be used on all hot rolled structural steel plates and sections up to a surface hardness of 300 Brinell (32HRc). Body of clamp is welded construction. Can be used to lift a plate from the horizontal to vertical position and vice versa through 180°. Clamp jaws and pads are manufactured from high-tensile steel. Fitted with a hold open and lock closed lever. The cam handle is ergonomically designed with a flat surface to allow for ease of operation while wearing protective gloves. The cam handle connects to the cam via a robust square drive. Unlike others, these plate clamps are designed with a sloping slot, which increases the grip on the load when the clamp is in the horizontal position. 4:1 design factor.
