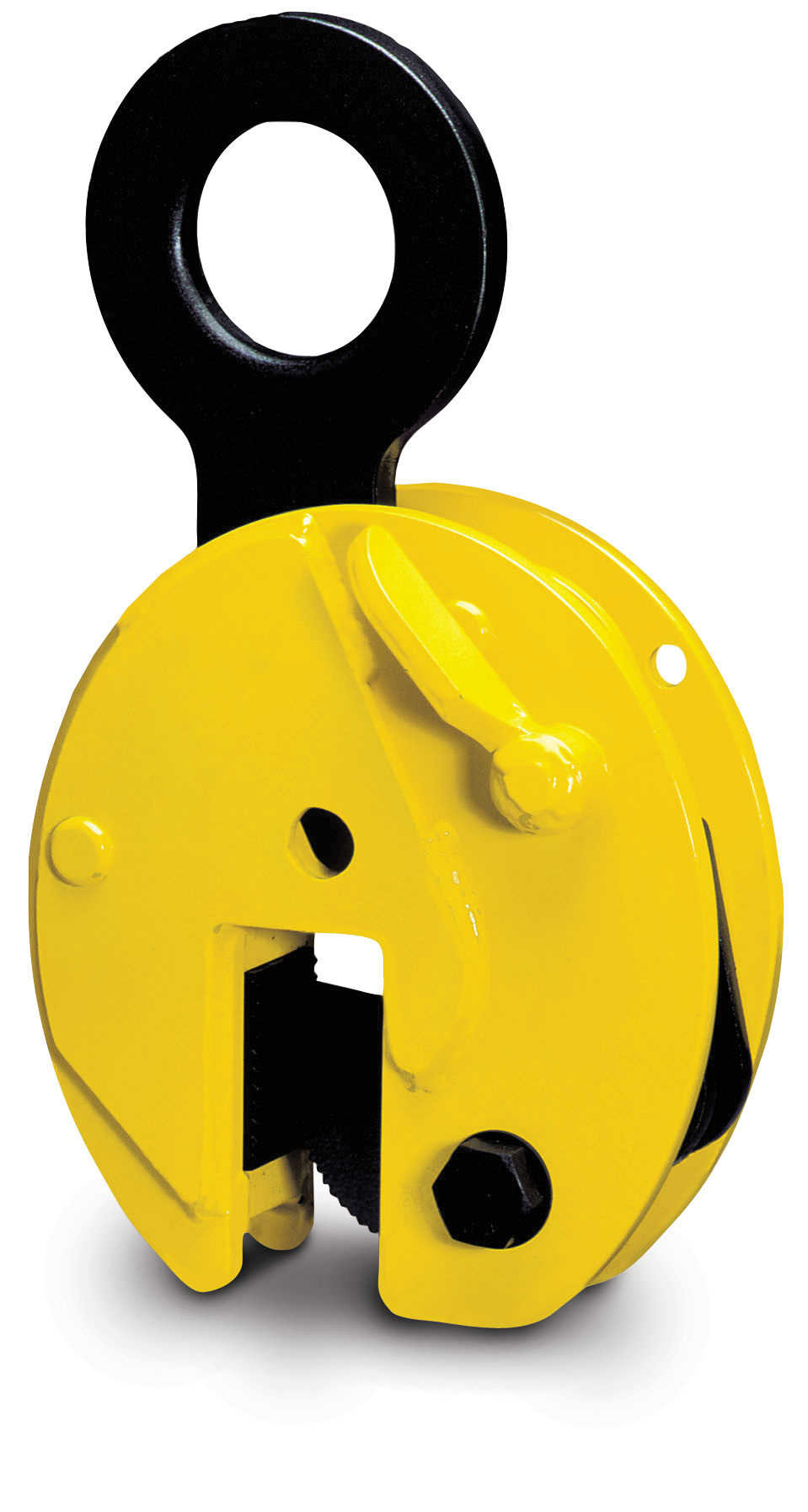

CM Camlok CZ Universal Plate Clamp, Working Load Limit 1,100 lbs., Part No. 92 500

Manufacturer: CM (Columbus McKinnon)
Availability: In stock
SKU: 92 500
Manufacturer part number: 92 500
Lead Time (subject to change, call to verify): typically ships in 7-10 business days
$812.44
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Part Number: 92 500
  • Working Load Limit (min.): 120 lbs.
  • Working Load Limit (max.): 1,100 lbs.
  • Jaw Capacity: 0 to 5/8 in.
  • Weight: 3.3 lbs.
  • CZ Plate Clamps can be used on all hot rolled structural steel plates and sections up to a surface hardness of 300 Brinell (32HRc).
  • Body of clamp is welded construction.
  • Can be used to lift a plate from the horizontal to vertical position and vice versa through 180°.
  • Clamp jaws and pads are manufactured from high-tensile steel.
  • Fitted with a hold open and lock closed lever.
  • The cam handle is ergonomically designed with a flat surface to allow for ease of operation while wearing protective gloves.
  • The cam handle connects to the cam via a robust square drive.
  • Unlike others, these plate clamps are designed with a sloping slot, which increases the grip on the load when the clamp is in the horizontal position.
  • 4:1 design factor.
