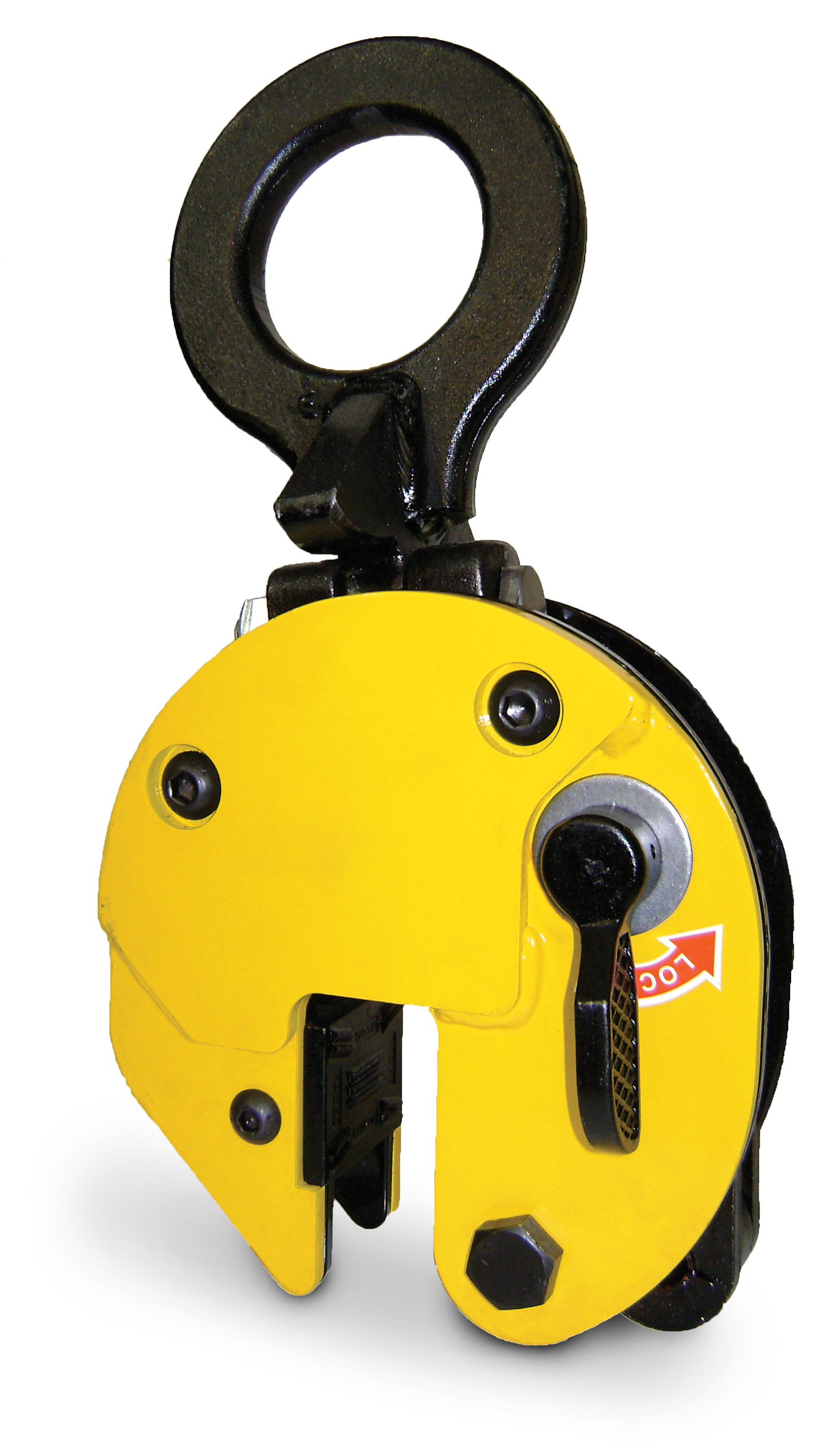

CM Camlok CY Hinged Universal Plate Clamp, Working Load Limit 6,600 lbs., Part No. CY3

Availability: In stock

SKU: CY3

Manufacturer part number: CY3

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Jaw Capacity

$1,876.38

Qty:

Documents, Drawings, and Manuals

Brochure

CM Lifting Clamps Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: CY3 Working Load Limit (min.): 1,350 lbs. Working Load Limit (max.): 6,600 lbs. Jaw Capacity: 0 to 1-1/4 in. CY Plate Clamps can be used on all structural steel plates up to a surface hardness of 300 Brinell (32HRc). These clamps are designed to be used with a two leg chain sling for lifting longer plates. Can be used to lift a plate from the horizontal to vertical position and vice versa. Can turn a plate from the horizontal to vertical position. Sufficient clamping of the load is achieved by the special shape of the hook ring. Fitted with a cam-operated closing mechanism that can be replaced with a chain pull open/close mechanism. Because of the swiveling hook ring, clamps can be fitted to a steel plate in any position. 4:1 design factor.
