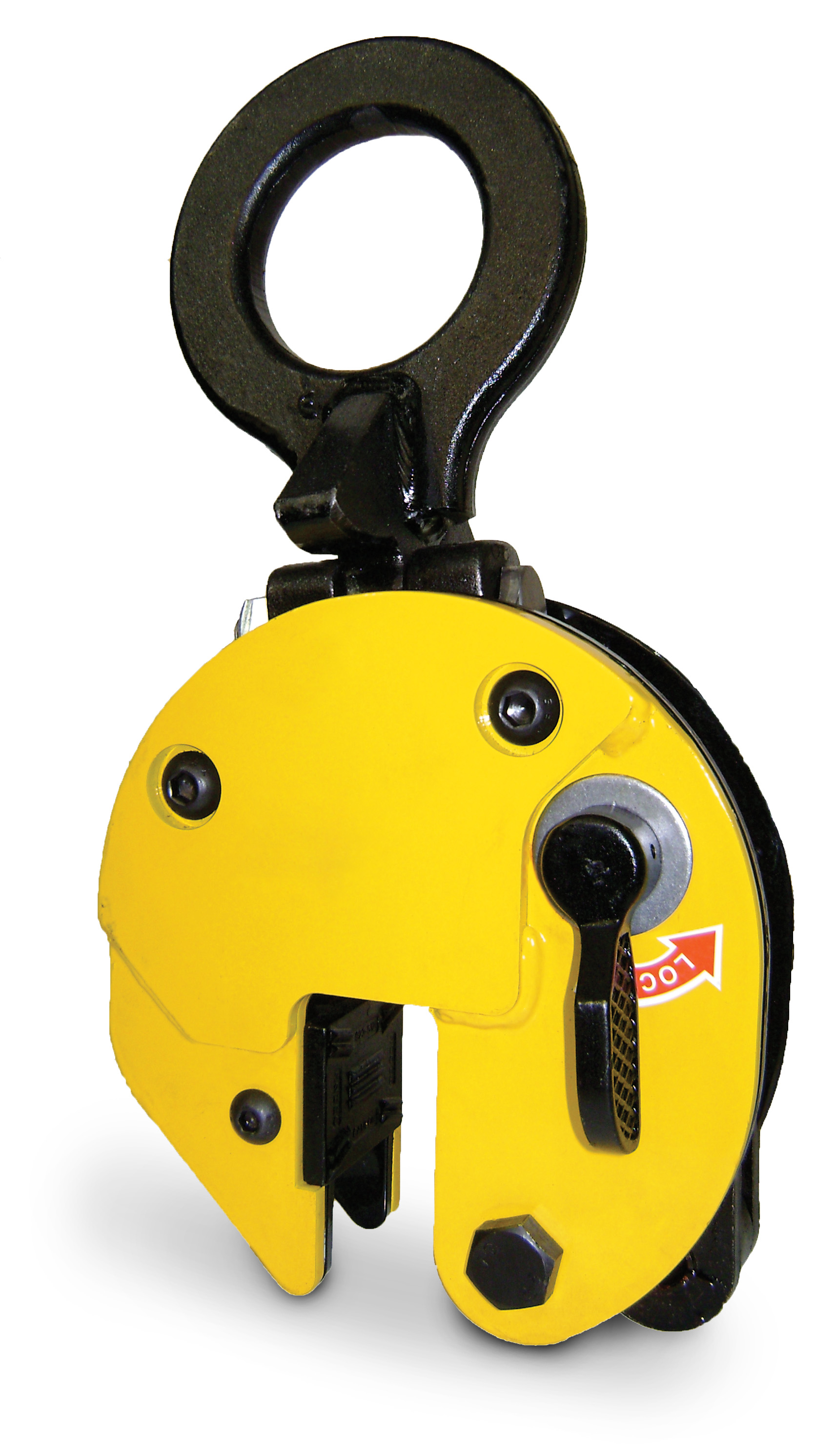

CM Camlok CY Hinged Universal Plate Clamp, Working Load Limit 2,200 lbs., Part No. CY1

Manufacturer: CM (Columbus McKinnon)
Availability: In stock
SKU: CY1
Manufacturer part number: CY1
Lead Time (subject to change, call to verify): typically ships in 7-10 business days
$1,229.85
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Part Number: CY1
  • Working Load Limit (min.): 450 lbs.
  • Working Load Limit (max.): 2,200 lbs.
  • Jaw Capacity: 0 to 3/4 in.
  • CY Plate Clamps can be used on all structural steel plates up to a surface hardness of 300 Brinell (32HRc).
  • These clamps are designed to be used with a two leg chain sling for lifting longer plates.
  • Can be used to lift a plate from the horizontal to vertical position and vice versa.
  • Can turn a plate from the horizontal to vertical position.
  • Sufficient clamping of the load is achieved by the special shape of the hook ring.
  • Fitted with a cam-operated closing mechanism that can be replaced with a chain pull open/close mechanism.
  • Because of the swiveling hook ring, clamps can be fitted to a steel plate in any position.
  • 4:1 design factor.
