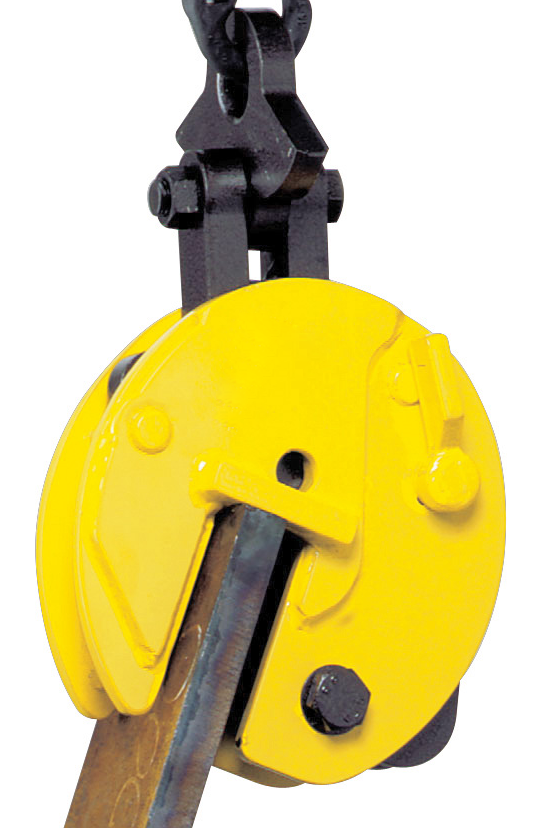

CM Camlok CX Heavy-Duty Hinged Universal Plate Clamp, Working Load Limit 13,200 lbs., Part No. CX6000

Manufacturer: CM (Columbus McKinnon)

SKU: CX6000

Manufacturer part number: CX6000

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Jaw Capacity

0 to 2 in.

$3,405.13

Qty:

Documents, Drawings, and Manuals

Brochure

CM Lifting Clamps Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: CX6000 Working Load Limit (min.): 2,650 lbs. Working Load Limit (max.): 13,200 lbs. Jaw Capacity: 0 to 2 in. Weight: 83.8 lbs. CX Plate Clamps are a more robust, heavy-duty model of the CY clamp. Has a reinforced plate at the top of the mouth and a heavy-duty hook ring. More suitable for turning vertically racked plates. Used on all hot rolled structural steel plates and sections up to a surface hardness of 300 Brinell (32HRc). Lifts plates from horizontal to vertical position and vice versa through 180°. Vertically racked plates can be turned over due to the built-in lifting eye and link. Clamps can be used with 2 leg slings. 4:1 design factor.
