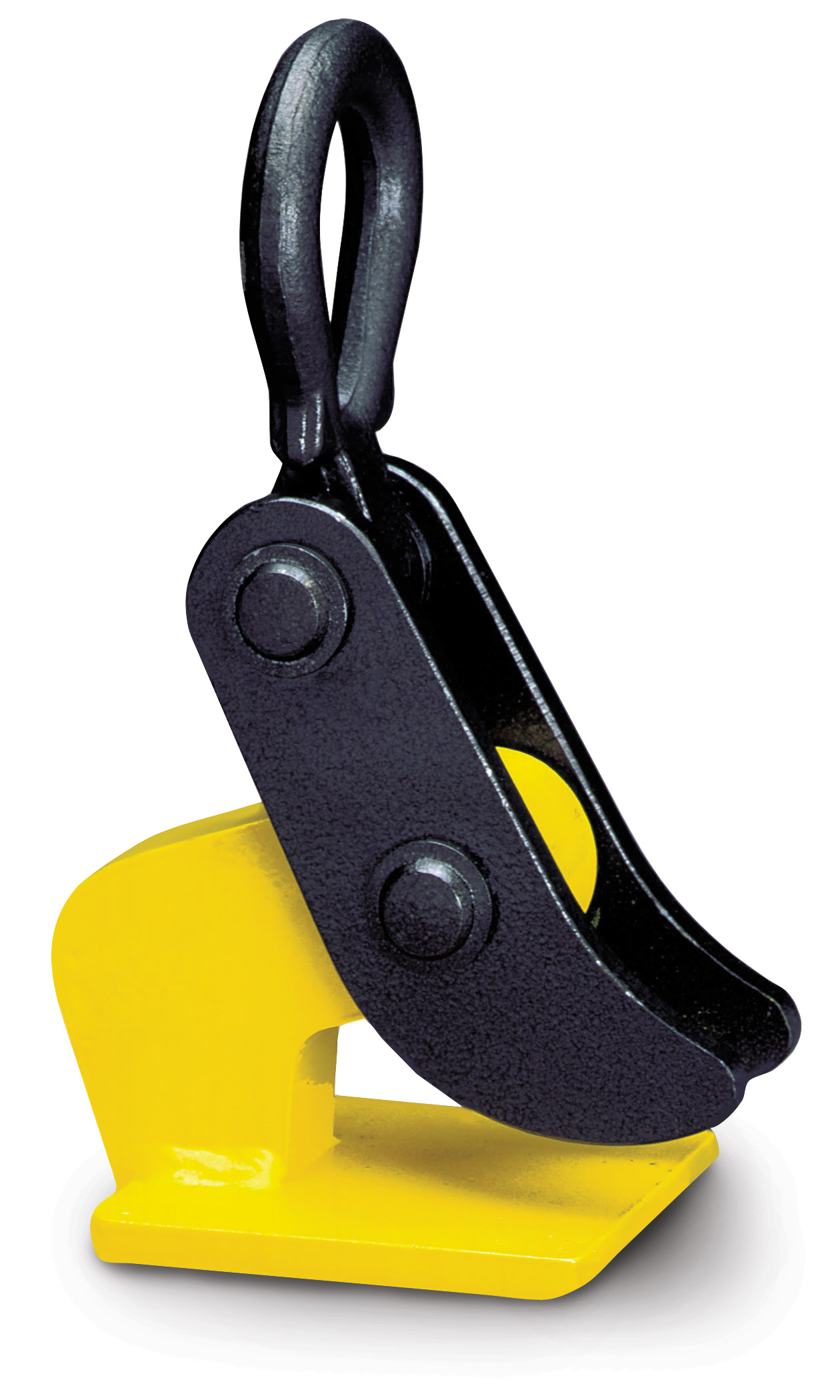

CM Camlok CH Heavy-Duty Horizontal Plate Clamp, Working Load Limit 4,400 lbs., Part No. CH2

Manufacturer: CM (Columbus McKinnon)
Availability: In stock
SKU: CH2
Manufacturer part number: CH2
Lead Time (subject to change, call to verify): typically ships in 7-10 business days
$1,150.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Part Number: CH2
  • Working Load Limit (per pair): 4,400 lbs.
  • Jaw Capacity: 1/4 to 1-1/4 in.
  • Weight (per pair): 24.3 lbs.
  • CH Clamps must be used in pairs and can be used on all types of materials in plate form, providing the plate can withstand the forces imposed.
  • Standard CH clamps are supplied with smooth jaws.
  • CH clamps are designed for loading process machines and to lift and transport sheet steel plates in the horizontal position.
  • Can be designed to suit any load or plate thickness.
  • Clamps are suitable for lifting one plate at a time, or bundles of plates provided the plates are the same width, have straight square sides, and are thicker than 10% of the maximum jaw capacity of the clamp.
  • Clamps have smooth teeth so they can be used on all types of material.
  • The smooth jaws can be replaced with serrated, hardened steel teeth and used on material up to 300 Brinell (32HRc).
  • Designed to be used with 2 legged slings.
  • CH clamps should never be side loaded.
  • Sold in pairs.
  • 4:1 design factor.
