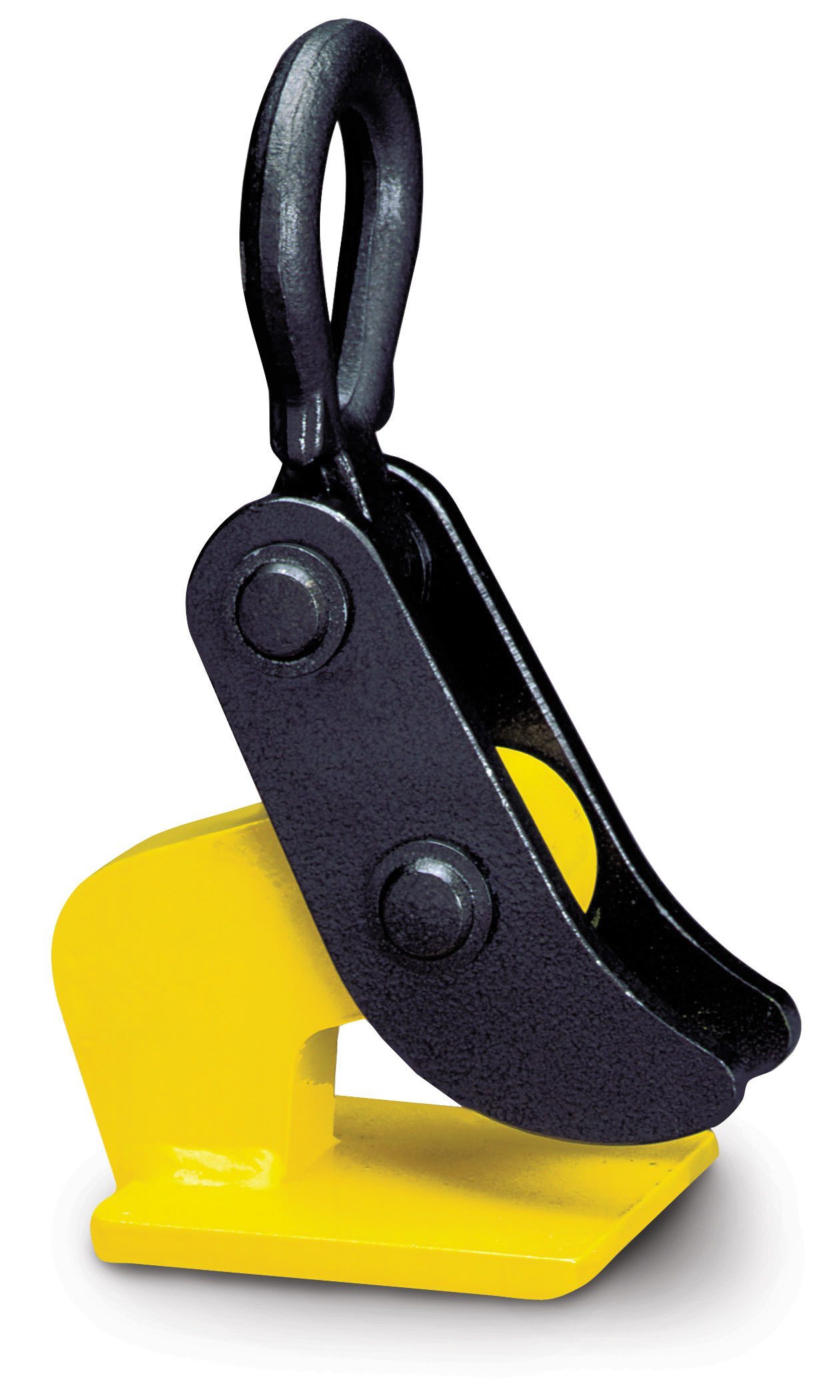

CM Camlok CH Heavy-Duty Horizontal Plate Clamp, Working Load Limit 17,600 lbs., Part No. HH8/L

Availability: In stock

SKU: HH8/L

Manufacturer part number: HH8/L

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Jaw Capacity

$2,673.00

Qty:

Documents, Drawings, and Manuals

Brochure

CM Lifting Clamps Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: HH8/L Working Load Limit (per pair): 17,600 lbs. Jaw Capacity: 2 to 4 in. Weight (per pair): 61.7 lbs. CH Clamps must be used in pairs and can be used on all types of materials in plate form, providing the plate can withstand the forces imposed. Standard CH clamps are supplied with smooth jaws. CH clamps are designed for loading process machines and to lift and transport sheet steel plates in the horizontal position. Can be designed to suit any load or plate thickness. Clamps are suitable for lifting one plate at a time, or bundles of plates provided the plates are the same width, have straight square sides, and are thicker than 10% of the maximum jaw capacity of the clamp. Clamps have smooth teeth so they can be used on all types of material. The smooth jaws can be replaced with serrated, hardened steel teeth and used on material up to 300 Brinell (32HRc). Designed to be used with 2 legged slings. CH clamps should never be side loaded. Sold in pairs. 4:1 design factor.
