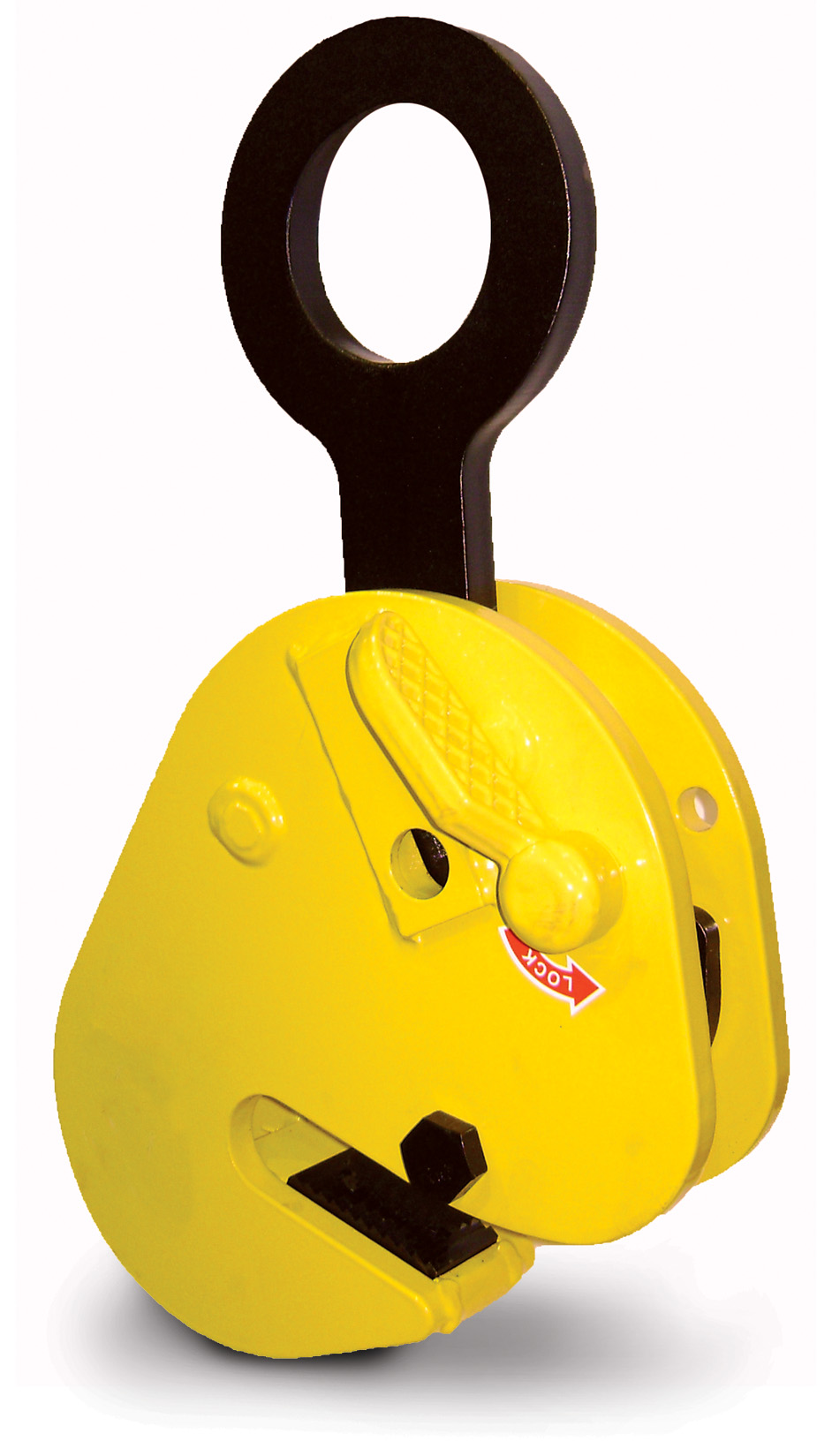

CM Camlok CG Girder Turning Clamp, Working Load Limit 4,400 lbs., Part No. CG2

Availability: In stock

SKU: CG2

Manufacturer part number: CG2

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Jaw Capacity

$1,195.86

Qty:

Documents, Drawings, and Manuals

Brochure

CM Lifting Clamps Brochure

Product Specifications

Attribute name	Attribute value
Features	Part Number: CG2 Working Load Limit (min.): 450 lbs. Working Load Limit (max.): 4,400 lbs. Jaw Capacity: 0 to 1-1/4 in. Weight: 30.9 lbs. CG Clamps can lift and turn girders through 90º and are designed to meet the requirements of the heavy steel industry. These general purpose clamps can be used on rolled steel joists, beams, and fabrications up to a surface hardness of 300 Brinell (32HRc). Can be used on beams, fabrications, channels, and rolled steel joists. Can lift and turn beams up to 90° and are designed to land the beam in either the vertical or horizontal position. Fitted with a cam/spring-operated safety lock Incorporates a positive lock onto one of the uppermost edges, which will allow the beam to be set down with the flange vertical. For long girders, fabrications, and welded structures, two clamps and a lifting beam may be required. 4:1 design factor.
