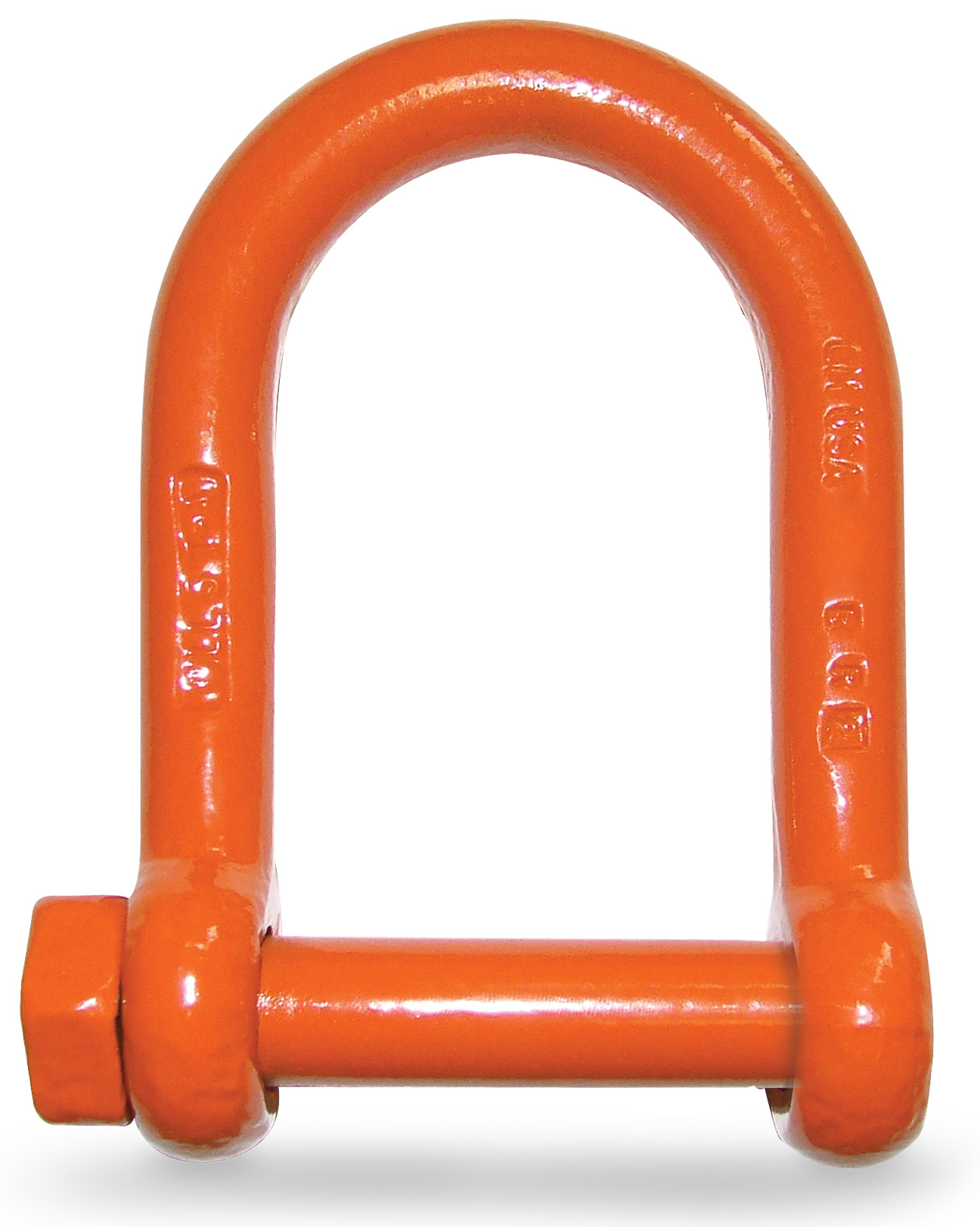

5 Ton Long-Reach Shackle, Screw Pin, Powder Coated, 3/4 in., Part No. M7152P

Availability: In stock

SKU: M7152P

Manufacturer part number: M7152P

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

$104.03

Qty:

Documents, Drawings, and Manuals

Brochure

CM Rigging Shackles Brochure

Product Specifications

Attribute name	Attribute value
Features	Part No. M7152P Size: 3/4 in. Working Load Limit: 10,000 lbs. Weight: 2.72 lbs. Style: Screw Pin Finish: Orange Powder Coated CM Long-Reach Shackles are designed for use in construction applications where a longer reach is needed to attach to pick points. Design factor of 5:1. Meets the requirements of ASME B30.26, but must not be side loaded. Do not point load. The load should be evenly distributed over the entire pin to achieve full working load limit. Do not side load long-reach shackles. 80% of bolt/pin must be covered to obtain full working load limit.
