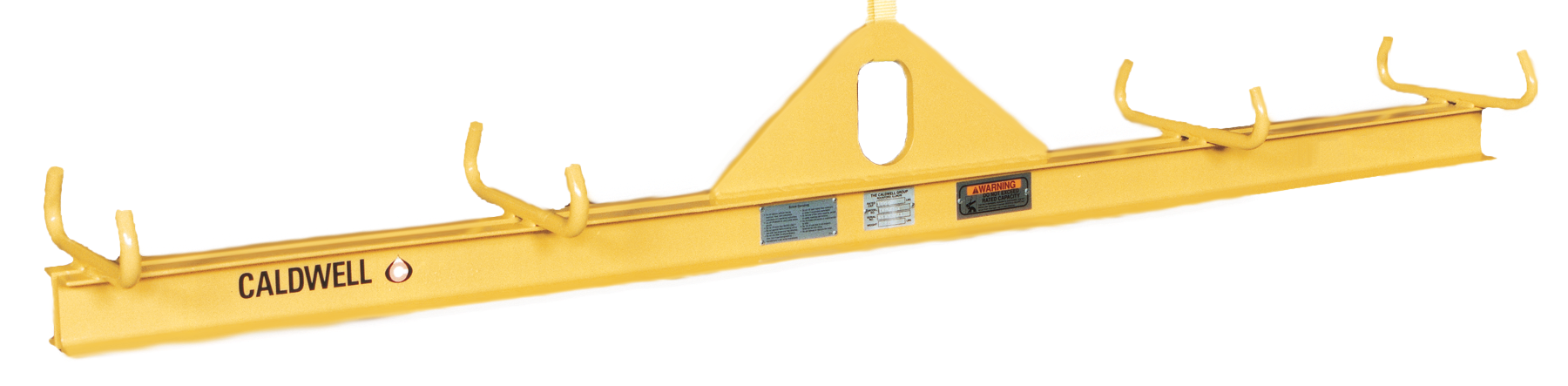

5 Ton Fixed Twin Basket Sling Lifting Beam

High quality twin basket lifting beam designed by the Caldwell Group for basket sling lifting applications. All lifting beams are engineered and manufactured to ASME B30.20, ASTM & OSHA standards.

Manufacturer: Caldwell

Availability: In stock

SKU: 18-5

Manufacturer part number: 18-5

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Spread *

Call for Price - (314) 869-7200

Qty:

Documents, Drawings, and Manuals

Specs

Caldwell Model 18 Lifting Beam Specs

Product Specifications

Attribute name	Attribute value
Features	Manufacturer's Part Number: 18-5 Manufacturer's Model: Model 18 Capacity: 5 Ton / 4535.92 kg Spread: 3-12 ft. (non-standard spreads available upon request) Standards: All Caldwell below the hook lifters meet or exceed all ASME, OSHA, & ASTM standards Standard Product Features: Model 18 lifting beams are designed to be used with slings in a basket hitch. They feature two sets of bent bar hooks (one set for 3 ft and 4 ft models) where the second spread is 1/2 the length of the first. Model 18 lifting beams provide greatest clearance in low headroom applications.
Country of Origin	Made in the USA
