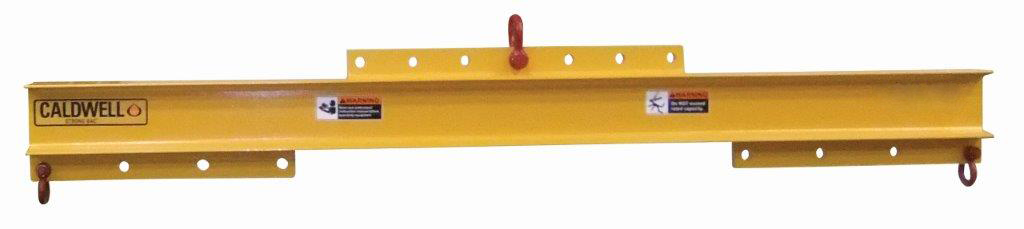

5 Ton Adjustable Lifting & Spreader Beam, Spread 4 ft - 8 ft

High quality adjustable beam designed by the Caldwell Group for lifting beam and spreader beam applications. All lifting and spreader beams are engineered and manufactured to ASME B30.20, ASTM & OSHA standards.

Manufacturer: Caldwell

Availability: In stock

SKU: 16-5-8

Manufacturer part number: 16-5-8

Spread Min-Max *

4 ft. - 8 ft. (1.22 m - 2.44 m)

Options

(2) Swivel Hooks
Top Chain Rigging

Call for Price - (314) 869-7200

Qty:

Documents, Drawings, and Manuals

Specs

Caldwell Model 16 Lifting & Spreader Beam Specs

Product Specifications

Attribute name	Attribute value
Features	Manufacturer's Part Number: 16-5-8 Manufacturer's Model: Model 16 Capacity: 5 Ton / 4535.92 kg Spread Min-Max: 4 ft.- 8 ft. (non-standard spreads available upon request) Standards: All Caldwell below the hook lifters meet or exceed all ASME, OSHA, & ASTM standards Standard Product Features: Model 16 adjustable lifting & spreader beams are equipped with standard top and bottom shackles. Model 16 lifting & spreader beams feature adjustable top and bottom lifting points, allowing model 16 beams to be used as both a lifting beam and a spreader beam. These adjustable points also allow model 16 beams to handle wide and unbalanced loads with ease. Optional Product Features Available upon request: Pair of Swivel Hooks Chain Top Rigging Extra hooks Cross Beams - Allowing model 16 beams to be used for 3-point & 4-point lifts
Country of Origin	Made in the USA
