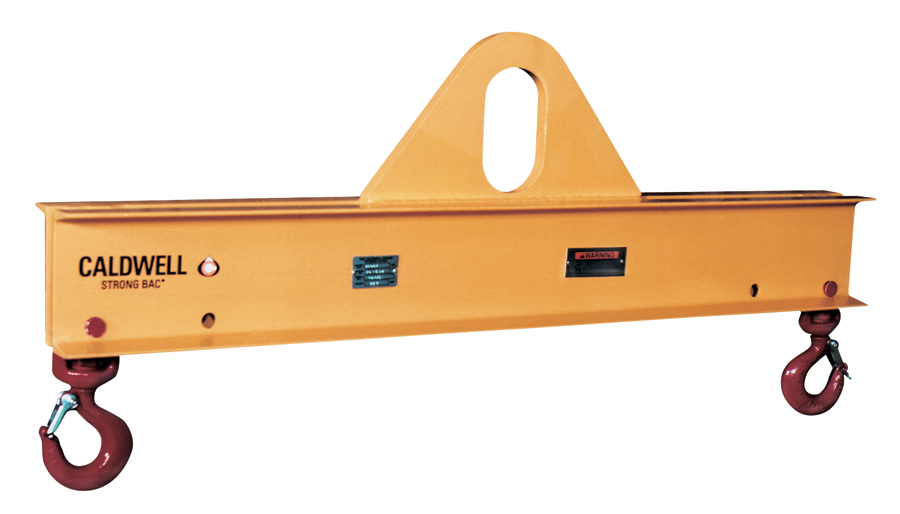

40 Ton Multi-Spread Low Headroom Lifting Beam

High quality lifting beam designed by the Caldwell Group for low headroom applications. All lifting beams are engineered and manufactured to ASME B30.20, ASTM & OSHA standards.

Manufacturer: Caldwell

Availability: In stock

SKU: 20-40

Manufacturer part number: 20-40

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Spread *

Options

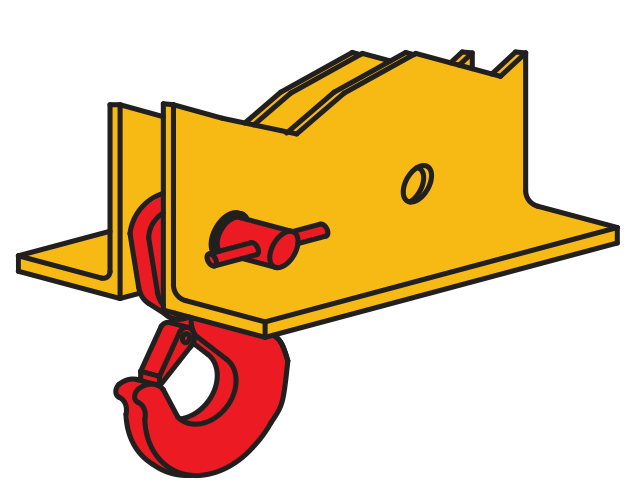

(2) Faspin Quick Release Pins

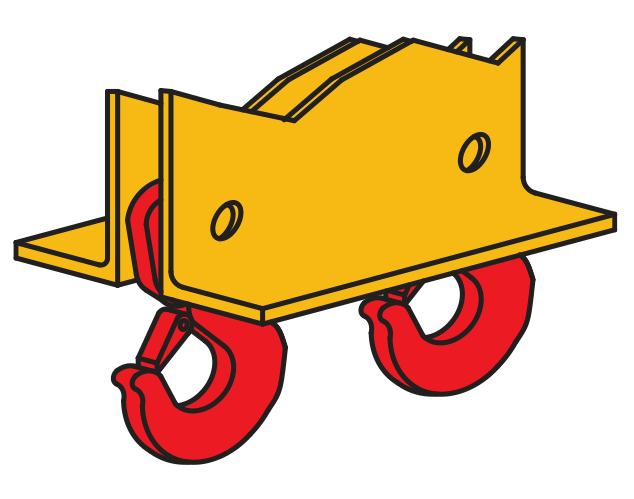

(2) Additional Hooks

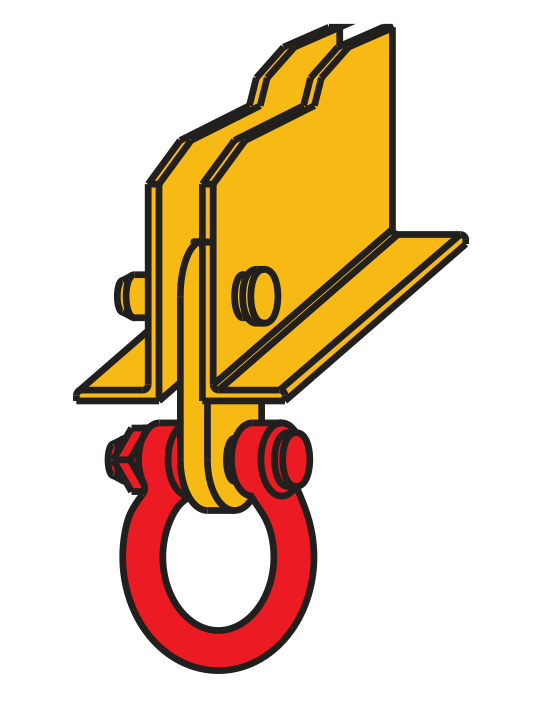

(2) Shackle Lugs
(2) Bolt Type Anchor Shackles

Call for Price - (314) 869-7200

Qty:

Documents, Drawings, and Manuals

Specs

Caldwell Model 20 Lifting Beam Specs

Product Specifications

Attribute name	Attribute value
Features	Manufacturer's Part Number: 20-40 Manufacturer's Model: Model 20 Capacity: 40 Ton / 36287.4 kg Spread: 4-6 ft. (non-standard spreads available upon request) Standards: All Caldwell below the hook lifters meet or exceed all ASME, OSHA, & ASTM standards Standard Product Features: Model 20 lifting beams with spreads of 3 ft. & 4 ft. have two spreads (inside spread & outside spread). Model 20 lifting beams with spreads over 4 ft. have three spreads (outside spread, outside spread less 1 ft., and outside spread less 2 ft.) Optional Product Features Available upon request: Additional lifting points or different placement of lifting points Faspin quick release pins for easy hook positioning Extra hooks Pin type bail Shackle lugs
Country of Origin	Made in the USA
