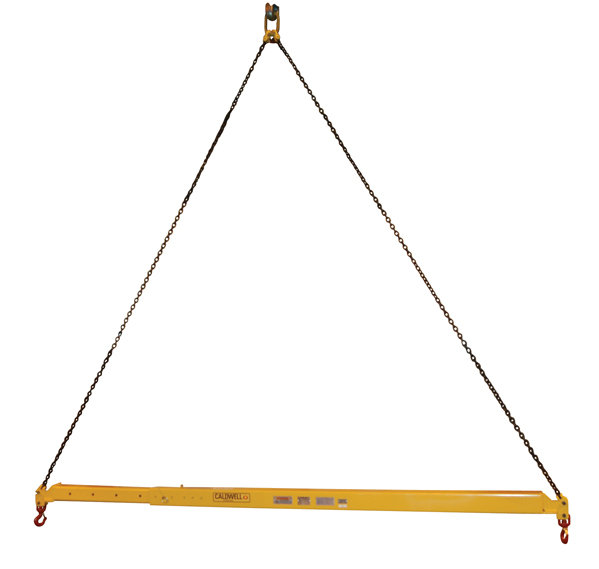

40 Ton Adjustable Spreader Beam, Spread 9 ft - 15 ft

Adjustable length spreader beam adds stability when lifting and is ideal for outdoor applications where headroom is not limited. All lifting beams are engineered and manufactured to ASME B30.20, ASTM & OSHA standards.

Manufacturer: Caldwell

Availability: In stock

SKU: 32-40-9/15

Manufacturer part number: 32-40-9/15

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Spread Min-Max *

9 ft. - 15 ft. (2.74 m - 4.57 m)

Options

(2) Swivel Hooks
Top Chain Rigging

Call for Price - (314) 869-7200

Qty:

Documents, Drawings, and Manuals

Specs

Caldwell Model 32 Spreader Beam Specs

Product Specifications

Attribute name	Attribute value
Features	Manufacturer's Part Number: 32-40-9/15 Manufacturer's Model: Model 32 Capacity: 40 Ton / 36287.4 kg Spread Min-Max: 9 ft. - 15 ft. (non-standard spreads available upon request) Standards: All Caldwell below the hook lifters meet or exceed all ASME, OSHA, & ASTM standards Standard Product Features: Model 32 adjustable spreader beams add stability when lifting and are ideal for outdoor applications where headroom is not limited. They feature a telescopic spread that increases in 12 inch increments, providing a versatile solution for handling many different sized loads. Optional Product Features Available upon request: Chain Top Rigging Wire Rope Top Rigging (call for pricing) Extra hooks
Country of Origin	Made in the USA
