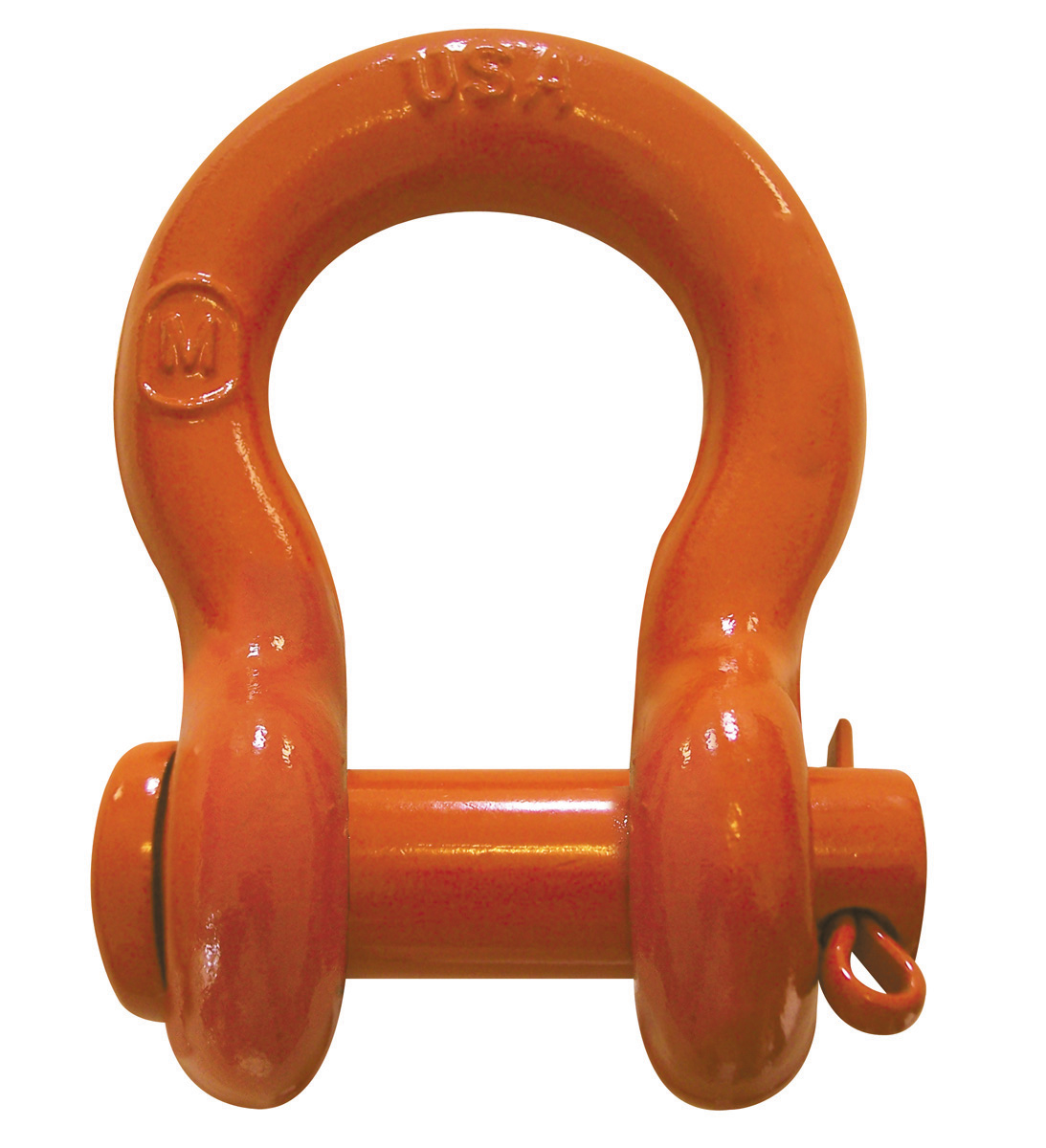

30 Ton Super Strong Anchor Shackle, Round Pin, Powder Coated, 1-3/4 in., Part No. M377P

* Round pin shackles are not recommended for overhead lifting or side loading.

Availability: In stock

SKU: M377P

Manufacturer part number: M377P

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

$264.99

Qty:

Documents, Drawings, and Manuals

Brochure

CM Rigging Shackles Brochure

Product Specifications

Attribute name	Attribute value
Features	Part No. M377P Size: 1-3/4 in. Working Load Limit: 30 Ton Weight: 27.7 lbs. Style: Round Pin Finish: Orange Powder Coated CM Super Strong Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable-sized carbon shackles. Anchor shackles can be side loaded or used for multiple connections. Manufactured from technically advanced domestic (U.S.A.) micro alloy steel with optimal hardness for strength and ductility. Shackles show major deformation before failure. Working load limit and traceability codes shown as permanent markings on body. All shackles have alloy quenched and tempered pins. Shackles meet dimensional requirements and exceed performance requirements of RR-C-271. *Round pin shackles are not recommended for overhead lifting or side loading.* *Note: Screw pin and bolt/nut/cotter shackles have a 6:1 design factor. 2-1/2 in. and all round pin shackles have a 5:1 design factor.*
