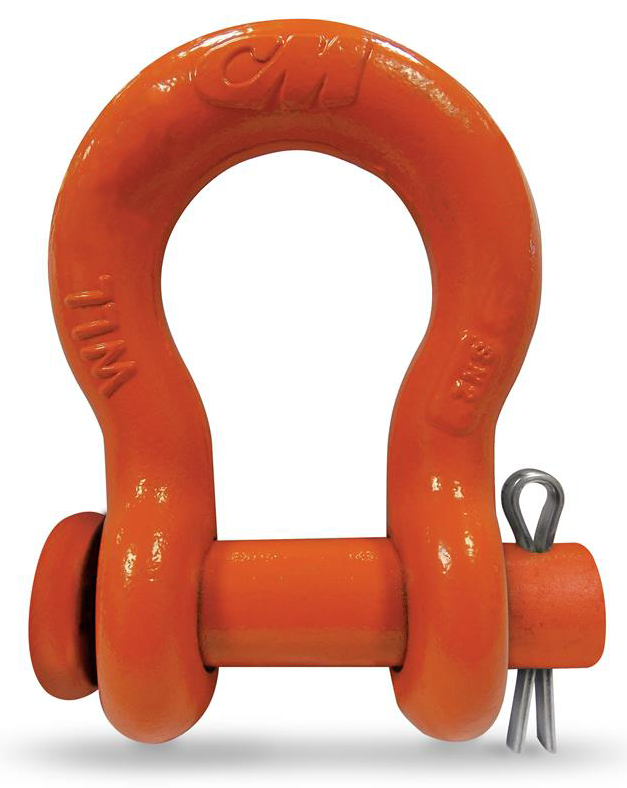

25 Ton Alloy Anchor Shackle, Round Pin, Powder Coated, 1-1/2 in., Part No. M357AP

* Round pin shackles are not recommended for overhead lifting or side loading.

Availability: In stock

SKU: M357AP

Manufacturer part number: M357AP

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

$230.43

Qty:

Documents, Drawings, and Manuals

Brochure

CM Rigging Shackles Brochure

Product Specifications

Attribute name	Attribute value
Features	Part No. M357AP Size: 1-1/2 in. Working Load Limit: 25 Ton Weight: 17.2 lbs. Style: Round Pin Finish: Orange Powder Coated CM Alloy Shackles are designed with a 5:1 design factor and have a strength rating approximately 50% higher than a comparable-sized carbon shackle and about 25% stronger than super strong shackles. Anchor shackles can be side loaded or used for multiple connections. Made from domestic (U.S.A.) Special Bar Quality (SBQ) steel having fine grain, reduced sulfur and phosphorus. Shackles show major deformation before failure. Working load limit and traceability codes shown as permanent markings on body. All shackles have alloy quenched and tempered pins. Shackles meet dimensional requirements and exceed performance requirements of RR-C-271. *Round pin shackles are not recommended for overhead lifting or side loading.*
