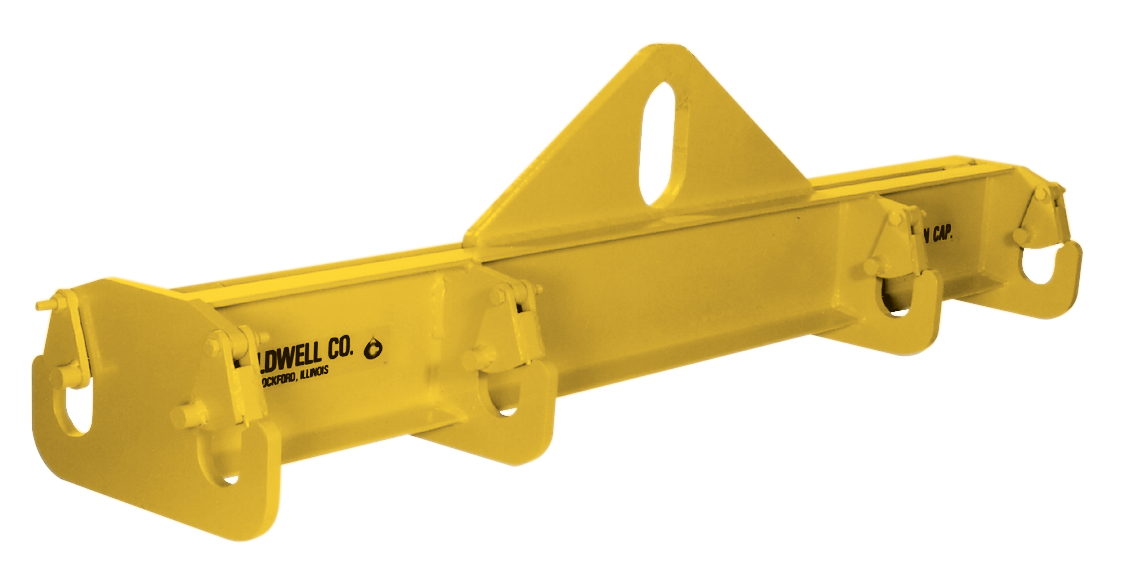

20 Ton Twin Basket Sling Lifting Beam

High quality twin basket lifting beam designed by the Caldwell Group for basket sling lifting applications. All lifting beams are engineered and manufactured to ASME B30.20, ASTM & OSHA standards.

Manufacturer: Caldwell

Availability: In stock

SKU: 22-20

Manufacturer part number: 22-20

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

Spread *

Options

Low Headroom Bail
(2) Additional Hooks
(2) Sling Spacers

Call for Price - (314) 869-7200

Qty:

Documents, Drawings, and Manuals

Specs

Caldwell Model 22 Lifting Beam Specs

Product Specifications

Attribute name	Attribute value
Features	Manufacturer's Part Number: 22-20 Manufacturer's Model: Model 22 Capacity: 20 Ton / 18143.70 kg Spread: 3-30 ft. (non-standard spreads available upon request) Standards: All Caldwell below the hook lifters meet or exceed all ASME, OSHA, & ASTM standards Standard Product Features: Model 22 lifting beams are designed to be used with slings in a basket hitch. They are equipped with specially designed hooks and latches to minimize the potential damage to slings. All model 22 lifting beams over 4 ft. have two sets of fixed hooks, one set at the outside spread, and one set at 1/2 the outside spread. Additional spreads and lifting points available upon request. Optional Product Features Available upon request: Additional lifting points or different placement of lifting points Lifting slings
Country of Origin	Made in the USA
