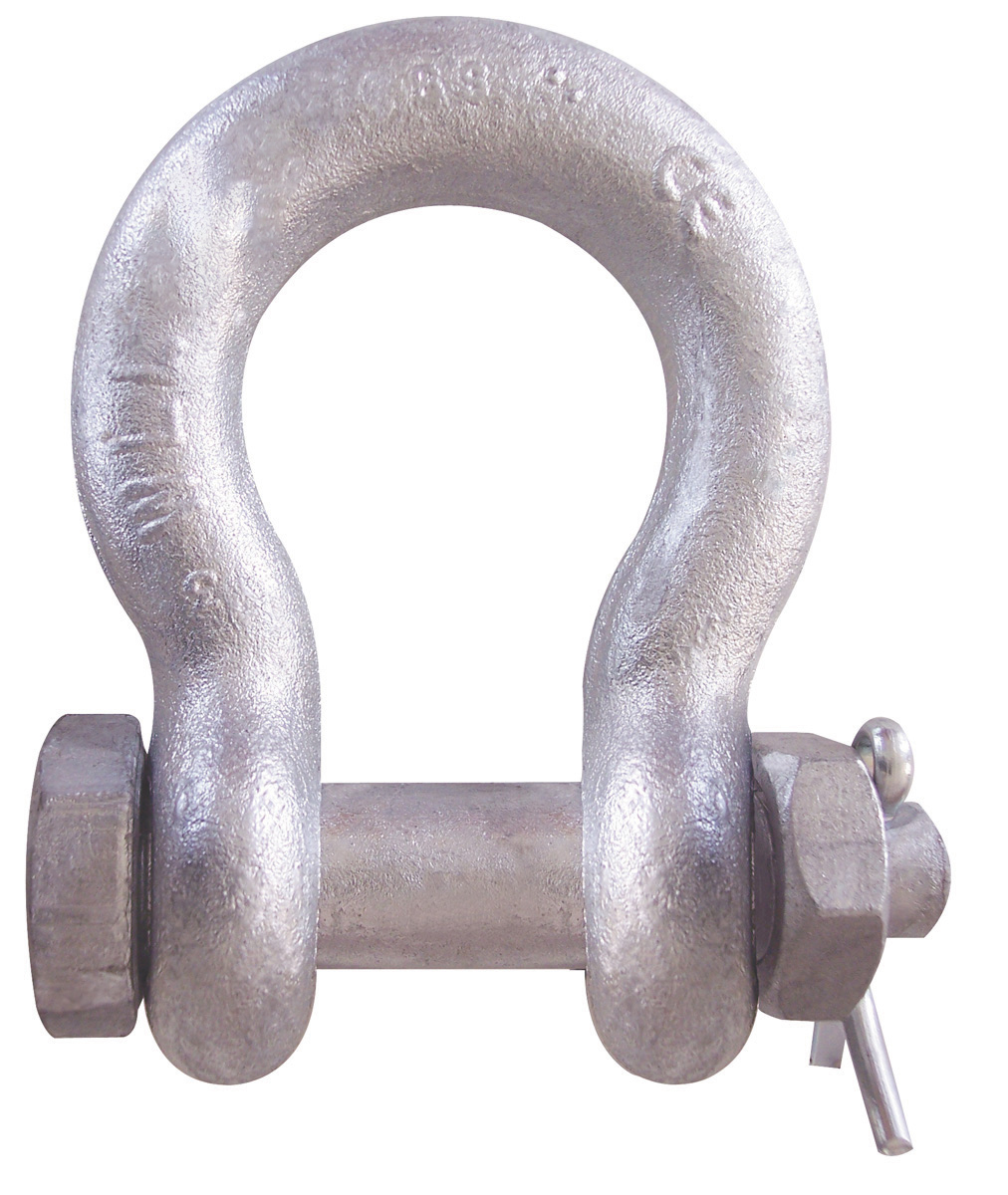

20 Ton Super Strong Anchor Shackle, Bolt/Nut/Cotter, Galvanized, 1-1/2 in., Part No. M857G

Manufacturer: CM (Columbus McKinnon)
SKU: M857G
Manufacturer part number: M857G
Lead Time (subject to change, call to verify): typically ships in 3-5 business days
$438.47
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Part No. M857G
  • Size: 1-1/2 in.
  • Working Load Limit: 20 Ton
  • Weight: 17.2 lbs.
  • Style: Bolt, Nut, & Cotter
  • Finish: Galvanized
  • CM Super Strong Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable-sized carbon shackles.
  • Anchor shackles can be side loaded or used for multiple connections.
  • Manufactured from technically advanced domestic (U.S.A.) micro alloy steel with optimal hardness for strength and ductility.
  • Shackles show major deformation before failure.
  • Working load limit and traceability codes shown as permanent markings on body.
  • All shackles have alloy quenched and tempered pins.
  • Shackles meet dimensional requirements and exceed performance requirements of RR-C-271.
  • Note: Screw pin and bolt/nut/cotter shackles have a 6:1 design factor. 2-1/2 in. and all round pin shackles have a 5:1 design factor.
