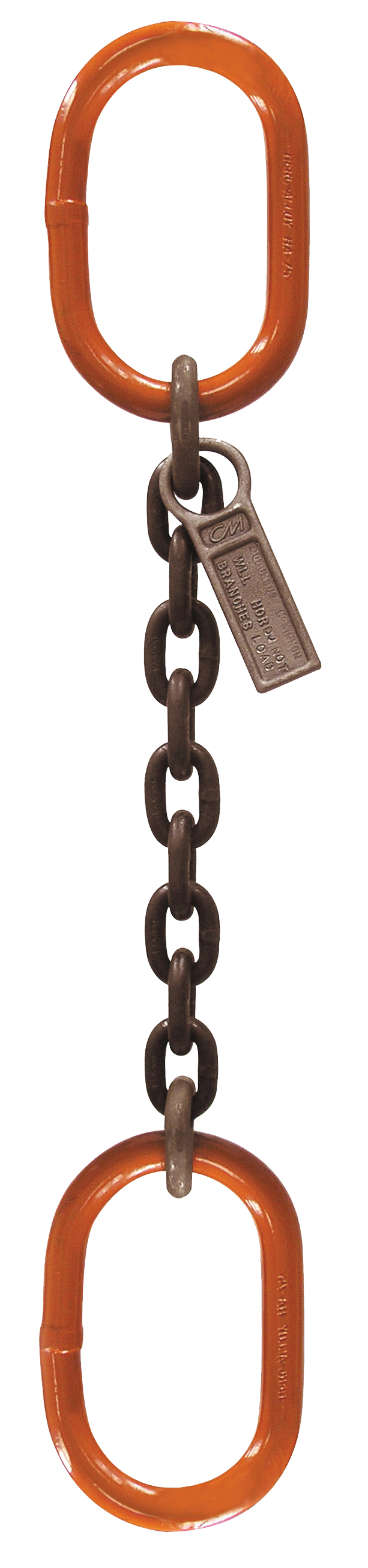

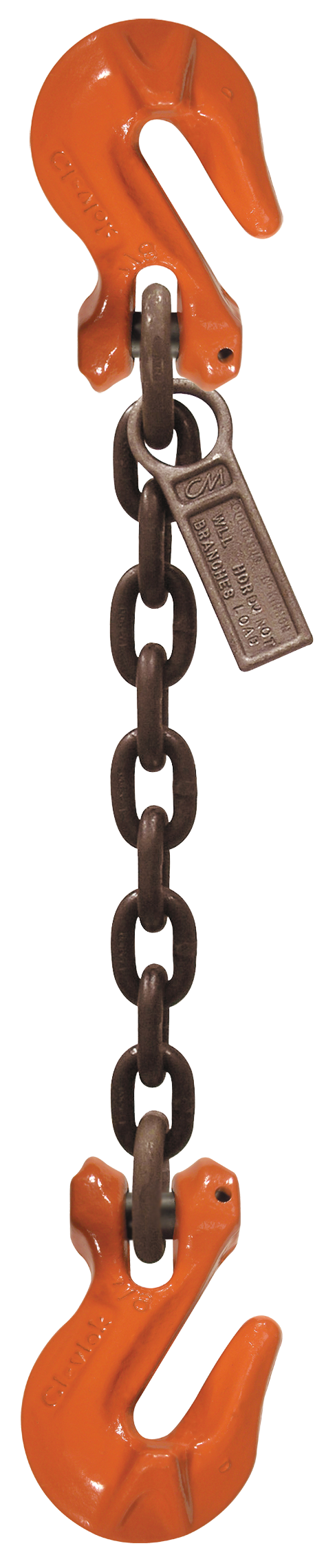

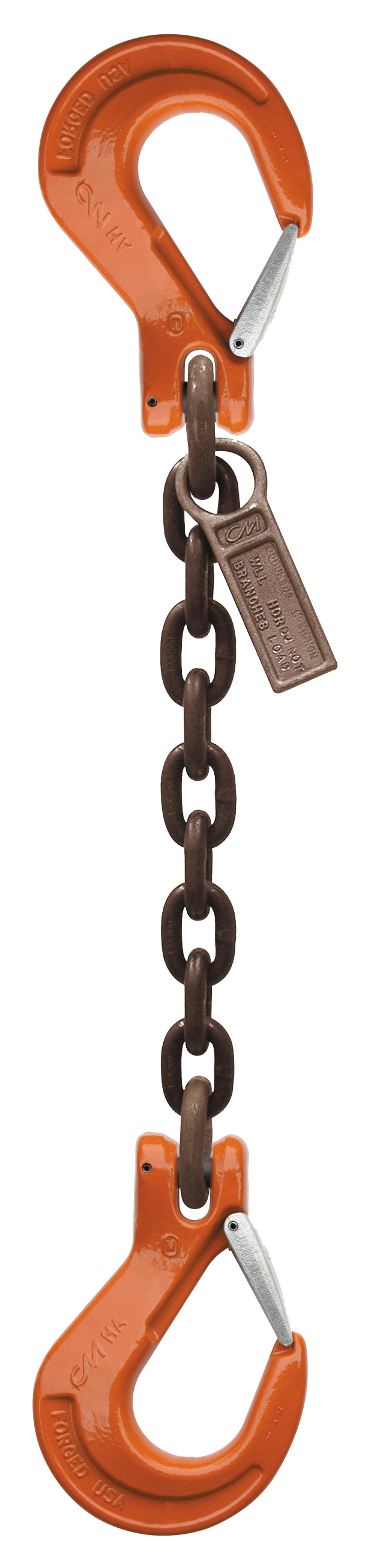

| Features | - Manufacturers Part Number: G100-SL4300-CUST-SLING
- Manufacturers Model: TSRE-G100
- Capacity: 2 Ton
- Chain Diameter: 9/32 in.
- Grade: 100
- Sling Type: Mechanical, Single-Leg
- Ease of Maintenance: Master links and hooks have a durable orange powder coated finish. Chain has environmentally friendly black coating for distinct appearance and ease of identification.
- Standards: OSHA 1910.184, ASME B30.9, Chain meets ASTM A973, Hooks and Hammerloks meet ASTM A952, NACM.
- Sling and Hardware Material: Superior triple alloy steel that provides the best strength-to-weight performance in the industry. Mechanical Hammerloks are constructed of drop forged alloy steel.

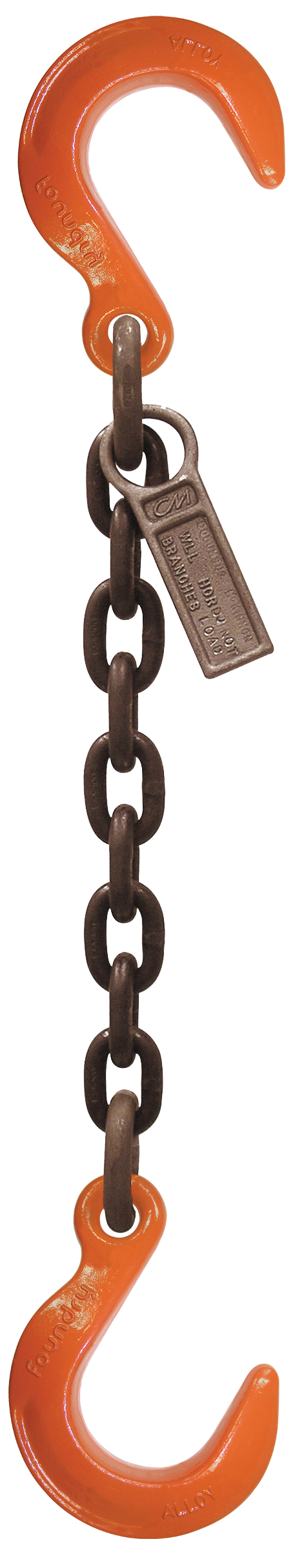

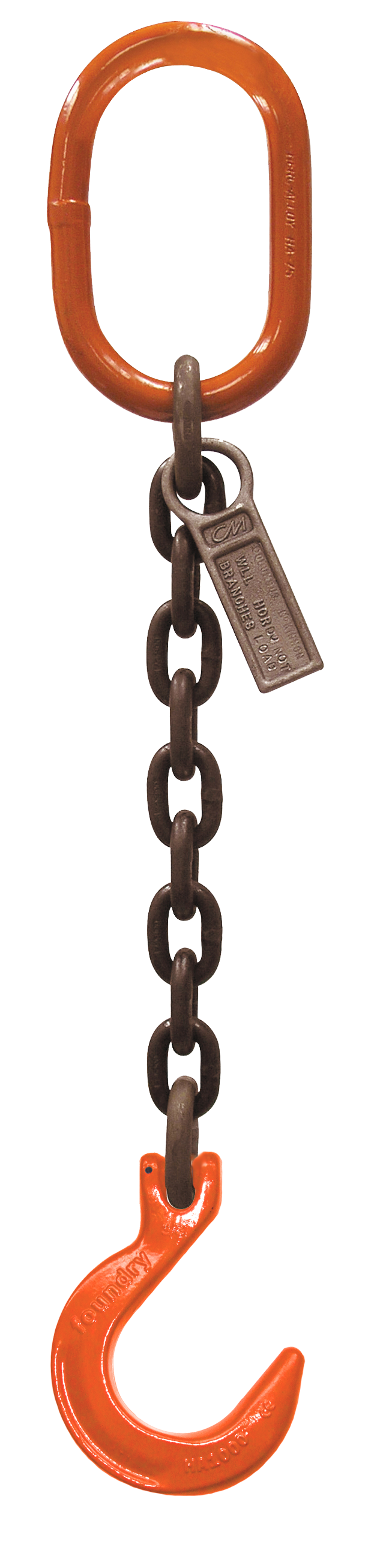

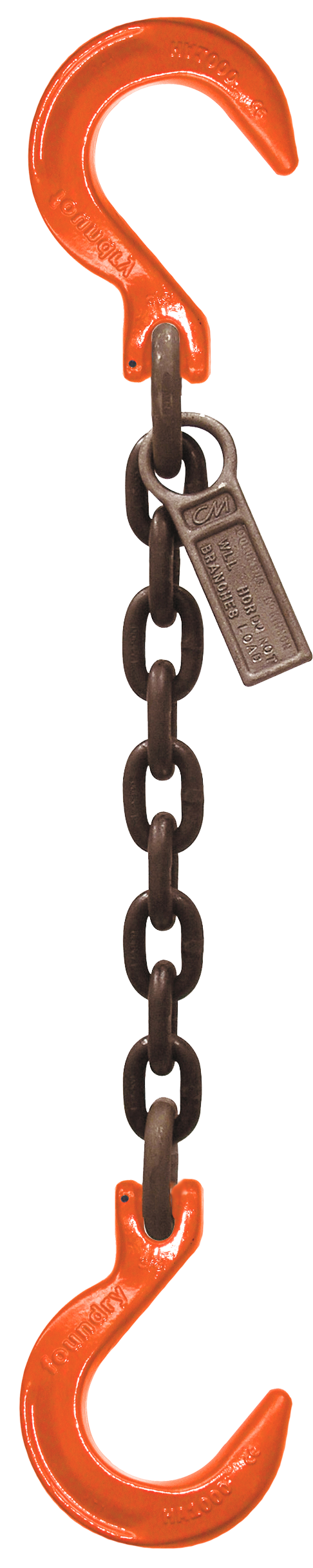

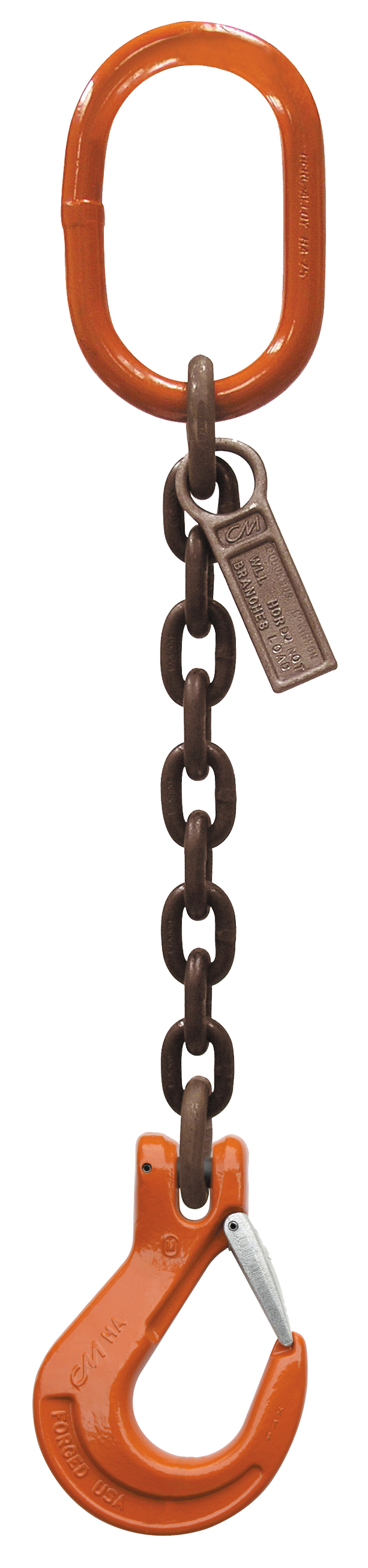

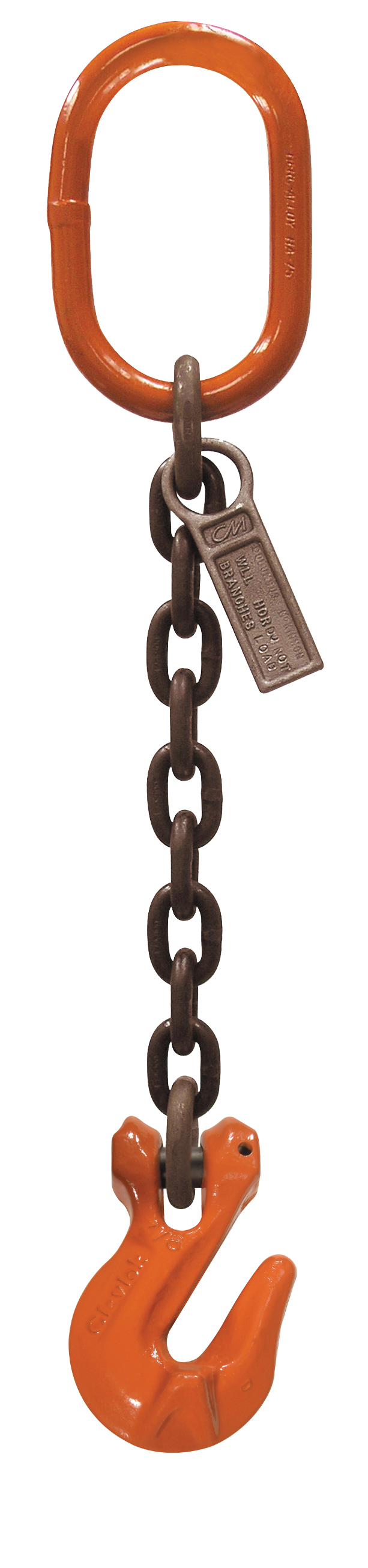

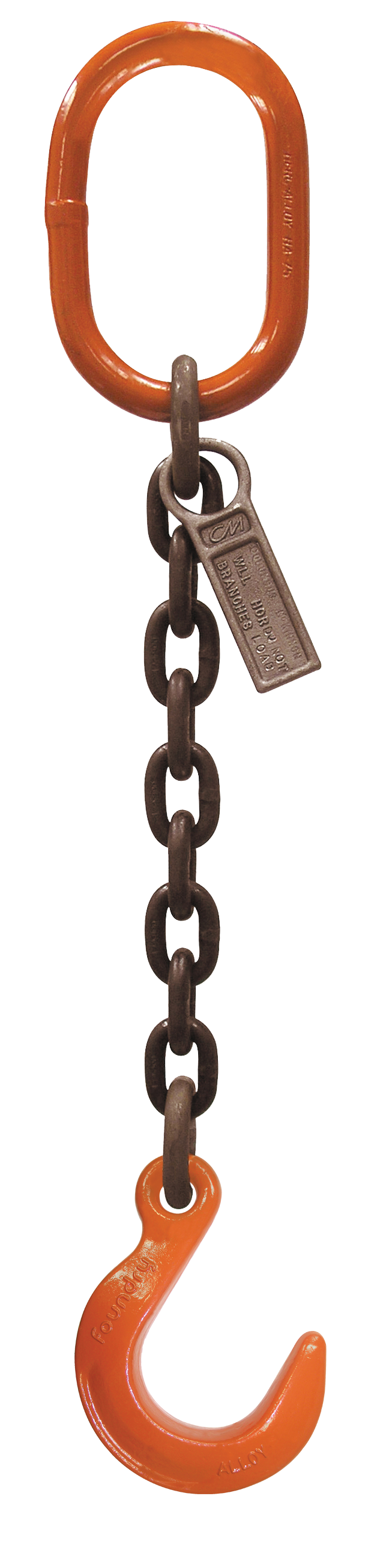

- Includes: Master Link or Sub-Assembly, Hammerlok(s)-if needed, Hook(s), and Alloy ID Tag.
- Design Factor: 4:1

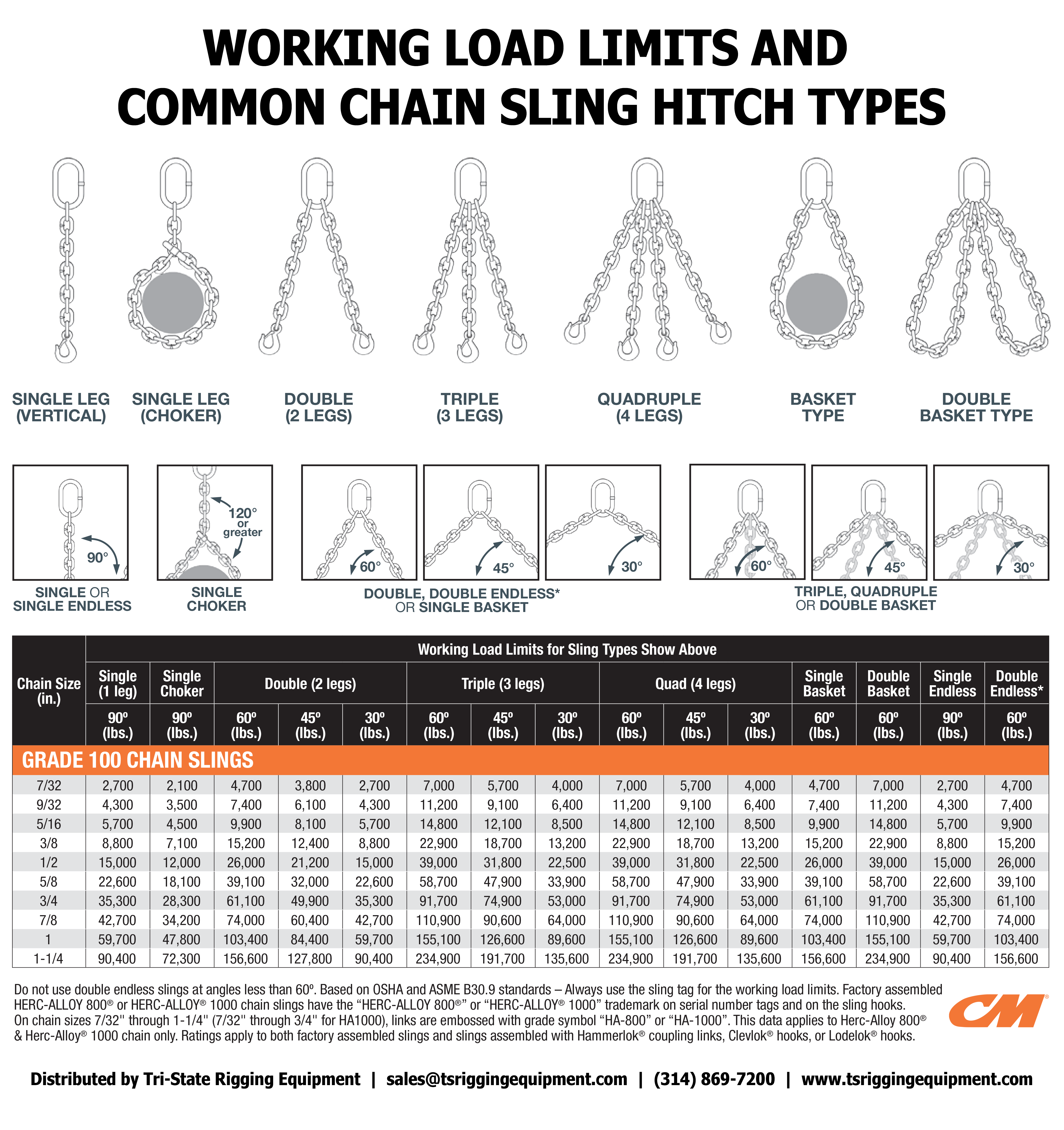

- Note: Working load limit can be affected by angles of loading, type of hitch used, environmental conditions such as hot and cold temperatures, and D/d ratio.
- Information on tag includes sling size, reach, working load limit (WLL), angle, serial number, name of manufacturer, grade of sling & number of branches.
- All parts are factory proof load tested to 100% of working load limits.
- 25% higher working load limit when compared to Grade 80.
- All chain slings are manufactured upon order and are non-refundable.
- Custom sizes are available upon request.
|
