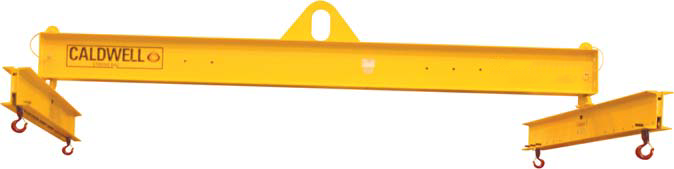

10 Ton Adjustable Four Point Lifting Beam, Spread 6 ft - 12 ft

Model 27SD lifting beams cover a wide range of requirements for many multi-point lifting applications. All lifting beams are engineered and manufactured to ASME B30.20, ASTM & OSHA standards.

Manufacturer: Caldwell

SKU: 27SD-10-144/96

Manufacturer part number: 27SD-10-144/96

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

Main Beam Spread *

6 ft. - 12 ft. (1.83 m - 3.66 m)

Crossarm Beam Spread *

3 ft. - 8 ft. (0.91 m - 2.44 m)

Call for Price - (314) 869-7200

Qty:

Documents, Drawings, and Manuals

Specs

Caldwell Model 27 Lifting Beam Specs

Product Specifications

Attribute name	Attribute value
Features	Manufacturer's Part Number: 27SD-10-144/96 Manufacturer's Model: Model 27SD Capacity: 10 Ton / 9071.85 kg Main Beam Spread Min-Max: 6 ft. - 12 ft. (non-standard spreads available upon request) Crossarm Spread Min-Max: 3 ft. - 8 ft. (non-standard spreads available upon request) Standards: All Caldwell below the hook lifters meet or exceed all ASME, OSHA, & ASTM standards Standard Product Features: Model 27SD lifting beams cover a wide range of requirements for many multi-point lifting applications. Swivel hooks with latches are standard with adjustable 1 ft. increments and faspins for easy crossarm adjustment. Model 27SD beams have a low headroom design.
Country of Origin	Made in the USA
