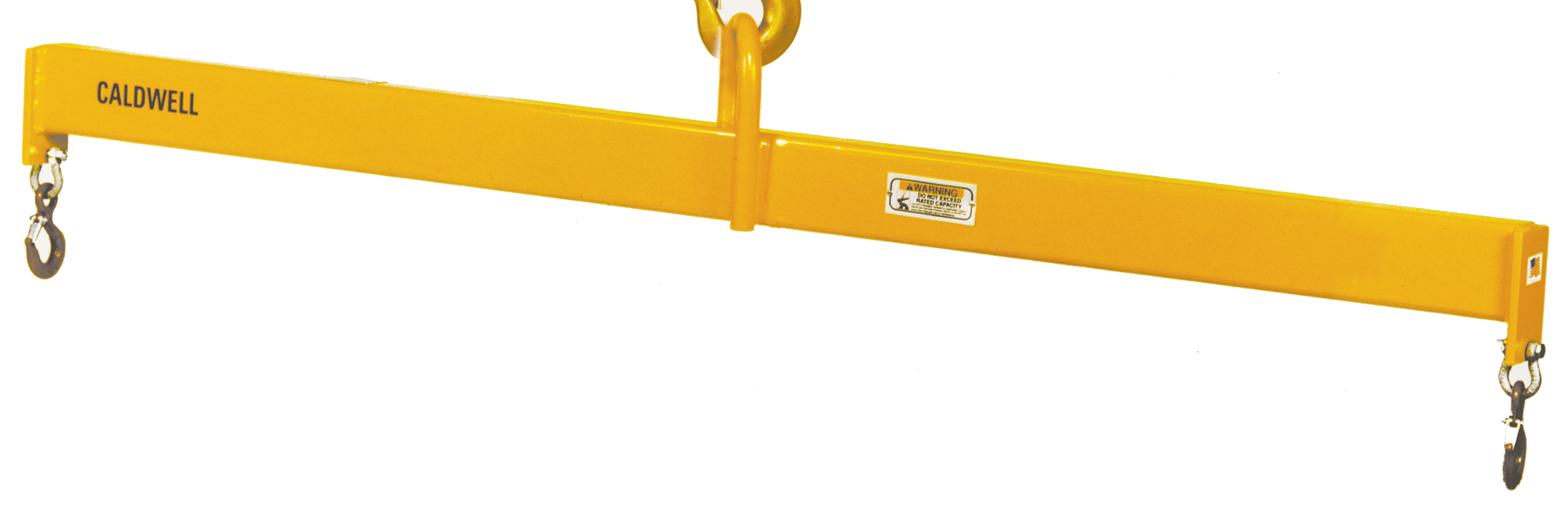

1 Ton Fixed Spread Lifting Beam

High quality lifting beam designed by the Caldwell Group for low headroom lifting applications. All lifting beams are engineered and manufactured to ASME B30.20, ASTM & OSHA standards.

Manufacturer: Caldwell

SKU: 19-1

Manufacturer part number: 19-1

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

Spread *

Call for Price - (314) 869-7200

Qty:

Documents, Drawings, and Manuals

Specs

Caldwell Model 19 Lifting Beam Specs

Product Specifications

Attribute name	Attribute value
Features	Manufacturer's Part Number: 19-1 Manufacturer's Model: Model 19 Capacity: 1 Ton / 907.19 kg Spread: 2-10 ft. (non-standard spreads available upon request) Standards: All Caldwell below the hook lifters meet or exceed all ASME, OSHA, & ASTM standards Standard Product Features: Model 19 lifting beams are designed with bent bar bails for easy crane hook attachment. They feature fixed eye hooks with hook latches. Model 19 lifting beams provide clearance in low headroom applications.
Country of Origin	Made in the USA
