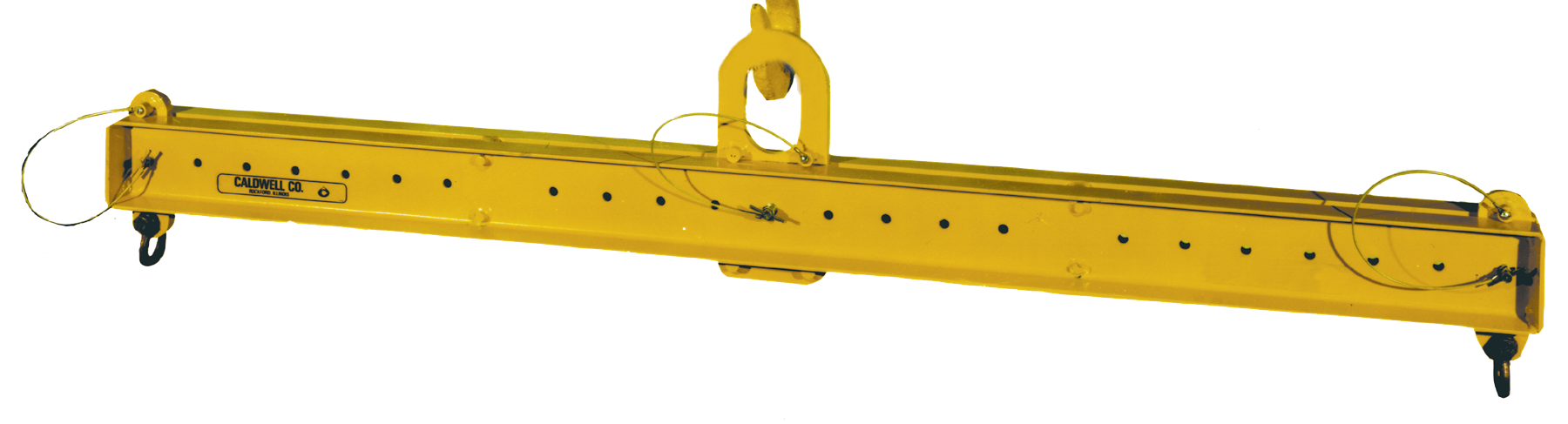

1-1/4 Ton Adjustable Lifting Beam Spread 3 ft - 6 ft

High quality adjustable beam designed by the Caldwell Group for lifting beam applications. This beam features adjustable lifting points as well as an adjustable bail. Beam price includes lower shackles. All lifting and spreader beams are engineered and manufactured to ASME B30.20, ASTM & OSHA standards.

Manufacturer: Caldwell

Availability: In stock

SKU: 17-1.1/4-6

Manufacturer part number: 17-1.1/4-6

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Spread Min-Max *

3 ft. - 6 ft. (0.91 m - 1.83 m)

Options

(2) Swivel Hooks

Call for Price - (314) 869-7200

Qty:

Documents, Drawings, and Manuals

Specs

Caldwell Model 17 Lifting Beam Specs

Product Specifications

Attribute name	Attribute value
Features	Manufacturer's Part Number: 17-1.1/4-6 Manufacturer's Model: Model 17 Capacity: 1-1/4 Ton / 1133.98 kg Spread Min-Max: 3 ft. - 6 ft. Standards: All Caldwell below the hook lifters meet or exceed all ASME, OSHA, & ASTM standards Standard Product Features: Model 17 adjustable lifting beams are equipped with standard bottom shackles. Model 17 lifting beams feature an adjustable bail and adjustable bottom lifting points, allowing model 17 beams to handle wide and unbalanced loads with ease. The spread of model 17 lifting beams adjust in 6 in. increments along the beam. Optional Product Features Available upon request: Pair of Swivel Hooks
Country of Origin	Made in the USA
